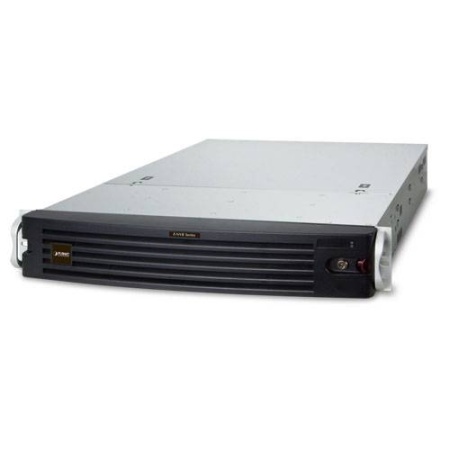

Сетевой регистратор Planet NVR-E6480

Артикул: NVR-E6480

Официальный дилер

В наличии / под заказ
Скидка на товар: до 10%

Бесплатный подбор: 8 (800) 511-12-04


Артикул NVR-E6480
Серия NVR-E
Доставка: от 2 до 6 недель
Оплата: в рублях по курсу ЦБ на день оплаты по безналичному расчёту.
  • Описание
  • Характеристики

Представленное решение используется для IP-видеонаблюдения высокой четкости, предназначено для работы с камерами Planet серии E или ONVIF для наблюдения за дорожным движением, общественных и других приложений для мониторинга безопасности.

Данное устройство - это 64-канальный сетевой видеорегистратор со встроенным Windows, который может подключать до 64 IP-камер и поддерживает 8 жестких дисков. Устройство использует RAID 0/1, чтобы оптимизировать процесс защиты данных легко и быстро.

Имеет порты Gigabit Ethernet, eMap, обнаружение движения видео, автоматическую регистрацию камеры и мобильные приложения для подключения смартфонов и планшетов. Поддерживает широкий диапазон разрешений в форматах H.264, MPEG-4 и M-JPEG.


Hardware

CPU

Intel Processor

RAM

2GB

Operating System

Windows 7 Standard Embedded

Ethernet

2 x RJ45, 10/100/1000BASE-T

USB Interface

6 x USB 2.0 for backup device and firmware upgrade

Video Interface

VGA video interface

Audio Interface

Mic-in, line-in and line-out

Storage Device

8 x 3.5" SATA II hard disk connectors; up to 6TB per HDD

External Storage Interface

1 x eSATA

LED

Power

Button

Power

Camera

Max. Channels

64-channel IP cameras

Function

Manual, auto or ONVIF search

Video

Compression

H.264, MPEG-4, M-JPEG

Resolution

10MP, 5MP, 4MP, 3MP, 2MP, 1.3MP, 1MP, VGA

Max. Live Video Frame Rate (Local Display)

6fps@10MP (1-ch), 15fps@5MP (1-ch), 8fps@4MP (1-ch), 15fps@3MP (1-ch), 30fps@2MP (1-ch), 30fps@1.3MP (1-ch), 30fps@1MP (1-ch), 30fps@VGA (1-ch)



*The above performance was tested with the following parameters: H.264 compression and 3Mbps bitrate

Audio

Audio Type

2-way

Live View

Display Layout Mode

Local: 1, 4, 5, 6, 8, 9, 10, 12, 16
Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64

Digital Zoom

Zoom in/out digitally by PiP (Picture-in-Picture)

Manual Recording/ Snapshot

Instant recording upon mouse click/Instant snapshot upon mouse click or hot key

Dual Stream Management

Live view of stream 1 or stream 2 of dual stream devices

Event Panel

Displays event status upon alarm or upon connection loss or recovery

Instant Playback

Instant playback in live view window

E-map

Area maps with camera icons and small live view windows hyperlinks

Playback

Video Search

Time/Event based

Playback Control

Continuous forward and backward playback with speeds 1x, 2x, 4x, 8x or frame-by-frame; pause; stop

Manual Snapshot

Instant snapshot from playback upon mouse click

Digital Zoom

Zoom in/out digitally by PiP (Picture-in-Picture)

Synchronized Playback

Up to 9 channels for local display; up to 64 channels for remote client

Video Export

Export video clips in AVI or RAW format

Recording

Recording Throughput

Maximum total bitrate 300Mbps

Schedule Recording

Record video with user defined schedule

Event Recording

Record video when the alarm event is triggered, including the pre-event buffered video clip

Frame Rate Setting

Different recording frame rate settings for non-event and triggered event

Manual Recording

Instant recording upon mouse click

Dual Stream Management

Recording of stream 1 or stream 2 of dual stream devices

Recording Frame Rate

Max. 1920fps in total; max. 30fps per camera

Monitor

Max. Local Display Resolution

1920 x 1200

Network and Configuration

Network Service

IPv4, IPv6, TCP/IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP (SNTP), ICMP, ARP, SMTP, FTP, UPnP, LDAP, ONVIF

Triggers and Event

Event Type

Video motion detection, passive IR sensor, external device through digital input, video loss and recovery, network loss and recovery, server loss and recovery, disk full, disk not found

Event Action

Record video, pop-up window with live video, switch to hotspot window, play beep sound, activate external device through digital output, upload snapshot to FTP server, execute system command to activate other programs, eMail notification with snapshots, command a PTZ device to go to a preset point

Manual Event

Manually activate external devices through digital output via live view monitor

Scheduler

Define the schedule of event manager

Management

Max. Number of Clients

1 local, 3 remote

Privileges

Live, Playback, Setup, Global

User Interface

 Graphic local user interface (Operated by mouse, keyboard)

 Web browser (Internet Explorer 7 or above)

 CMS utility

 App viewer

Multiple Languages Support

Arabic, Czech, Danish, German, Estonian, English, Spanish, Finnish, French, Hebrew, Hungarian, Indonesian, Italian, Japanese, Netherland, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese, Simplified Chinese, Traditional Chinese

Log Type

User Operation, Setup Device, Setup System, Setup Users, Setup Schedule, Setup Event, System Status, Request Log

Environment

Power

100-240V AC, 4-2A, 50-60Hz

Consumption

200W

Operating Temperature

0~40 degrees C

Humidity

10~85% RH

Weight

11.4 kg (with 1 system HDD and front cover)

Dimensions (W x D x H)

482 x 560 x 88 mm
