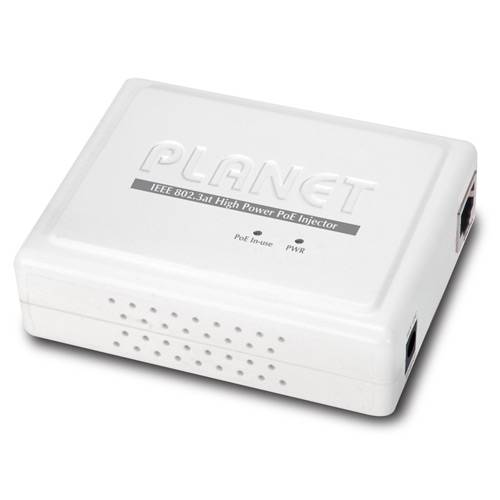

POE инжектор Planet POE-161

Hardware Specifications

Hardware Version

version 2

Interface

"Data" Input Port：1 x RJ-45 STP
"PoE (Data+Power)" Output Port：1 x RJ-45 STP
DC 56V Input Power Socket：1

LED Indicator

System: Power x 1 (Green)
PoE Port: PoE in Use x 1 (Green)

Network Cable

10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)

Data Rate

10/100/1000Mbps

Dimensions (W x D x H)

95 x 70 x 25 mm

Weight

83g

Unit Input Voltage

DC 56V, 0.53A

Power Requirements

100-240V AC, 50/60Hz

Power Consumption

30 watts (max).

Number of devices can be powered

1

Power over Ethernet

PoE Standard

IEEE 802.3at Gigabit Power over Ethernet standard / Mid-Span PSE

PoE Power Output

DC 56V / 30 watts

PoE Power supply Type

Mid-Span

Power Pin Assignment

4/5(+), 7/8(-)

Standards Conformance

Standards Compliance

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet

Regulation Compliance

FCC Part 15 Class A, CE

Environment

Operating Temperature

0 ~ 50 degrees C

Storage Temperature

-10 ~ 70 degrees C

Humidity

5 ~ 95% (non-condensing)
