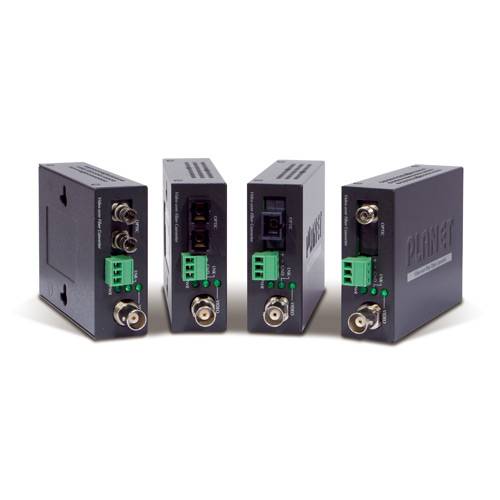

Медиаконвертер Planet VF-10x-KIT

Video Characteristic

Video Channel

1 channel Bi-direction

Signal Mode

NTSC / PAL / SECAM

Video Connector

BNC

Video Input / Output Impedance

75ohm / unbalanced interface

Video Input / Output Voltage

1.0 Vpp / Typical peak-peak value

Video Bandwidth

6.5MHz

Video Digital Bit Width

8/10 bit

Differential Gain(DG)

<1.3% (Typical Value)

Differential Phase(DP)

<1.3° (Typical Value)

SNR Weighted

63dB (Typical Value)

Data Interface

Data Channel

1 channel

Physical Protocol

RS-485

Operation Mode

Simplex

Data Connector

3 pin terminal block with screw clamps

Data Rate

DC-115.2Kbps

Data Distance

RS-485: 0-1200m

Bit Error Rate (BER)

< 10ns

Optical Interface

Optical Connector

VF-101-KIT：ST
VF-102-KIT：FC
VF-102SC-KIT：SC
VF-102S15-KIT：SC
VF-106-KIT：SC, WDM

Distance

VF-101-KIT：2km for multi-mode
VF-102-KIT：20km for single mode
VF-102SC-KIT：2km for multi-mode
VF-102S15-KIT：15km for single mode
VF-106-KIT：20km for single mode

Optical Wavelength

VF-101-KIT
VF-101-T：TX & RX: 1310nm
VF-101-R：TX & RX: 1310nm

VF-102-KIT
VF-102-T：TX: 1310nm, RX: 1550nm
VF-102-R：TX: 1550nm, RX: 1330nm

VF-102SC-KIT
VF-102SC-T：TX & RX: 1310nm
VF-102SC-R：TX & RX: 1310nm

VF-102S15-KIT
VF-102S15-T：TX & RX: 1310nm
VF-102S15-R：TX & RX: 1310nm

VF-106-KIT
VF-106-T：TX: 1310nm, RX: 1550nm
VF-106-R：TX: 1550nm, RX: 1330nm

Launch Power (dBm)

VF-101-KIT
Max. : -14, Min. : -19
VF-102-KIT
Max. : -7, Min. : -14
VF-102SC-KIT
Max. : -14, Min. : -19
VF-102S15-KIT
Max. : -7, Min. : -20
VF-106-KIT
Max. : -8, Min. : -14

Receive Sensitivity (dBm)

VF-101-KIT：-34.5
VF-102-KIT：-32
VF-102SC-KIT：-34.5
VF-102S15-KIT：-28
VF-106-KIT：-31

Max. Input Power (dBm)

VF-101-KIT：-14
VF-102-KIT：0
VF-102SC-KIT：-14
VF-102S15-KIT：-8
VF-106-KIT：0

Cable

50/125μm or 62.5/125μm multi-mode cable
9/125μm single mode cable

Hardware Specifications

LED Indicators

• One Power
• One for Video
- Green, Link
• One for Fiber Optic
- Green, Link

Dimensions (W x D x H)

94 x 70 x 26 mm

Weight

215g

Power Requirements

5V / 2A

Power Consumption

4.8 watts (maximum)

Mechanical

Metal

Installation

Wall-mountable, DIN-rail (with optional kit), chassis installation

Compatible Converter Chassis

MC-700 / MC-1500 / MC-1500R

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Environment

Operating

Temperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
