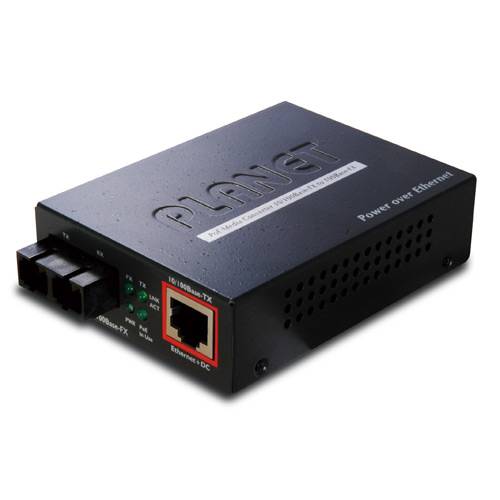

Медиаконвертер Planet FTP-802

Interface

Copper

1-port Fast Ethernet TP interface, auto negotiation, auto-MDI / MDI-X with PoE injector function

Fiber

FTP-802
Multi-mode: 50/125µm or 62.5/125µm optical fiber
FTP-802S15
Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber

Fiber Port Type (connector)

FTP-802 : SC
FTP-802S15 : SC

Cable Distance

FTP-802 : 2km
FTP-802S15 : 15km

Optical Frequency

FTP-802 : 1310nm
FTP-802S15 : 1310nm

Launch Power(dBm)

FTP-802 : max.-14 min.-19.0
FTP-802S15 : max. -7 min.-20

Receive Sensitivity

FTP-802 : -34.5
FTP-802S15 : -28

Maximum Input Power

FTP-802 : -14
FTP-802S15 : -8

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet

Power Output

PoE 48V DC, max. 15.4 watts, 350mA

Power Pin Assignment

1/2(+) , 3/6(-)

Hardware Specifications

Switch Architecture

Store-and-Forward

Flow Control

Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode

LED

System: Power, Status
FX / LNK: Data Active, Fiber Link
TX / LNK: 10/100 Link / Active
PoE in Use: Detects PSE Device

Dimensions (H x W x D)

26 x 70 x 97 mm

Weight

0.2 kg

Power Supply

48V DC, 0.4A external AC-to-DC adapter

Operating Temperature

0~50 degrees C

Operating Humidity

5~90% (non-condensing)

LFP Mode

Enable: when either TP port or FX port is broken, shut down the other port
Disable: Link LED indicators is still on if connection of the other end is broken

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Protocols and Standards Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet

Cables

TP: Cat 5/5e UTP cable
Fiber: Multi-mode: 50/125µm or 62.5/125µm optical fiber
Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber
