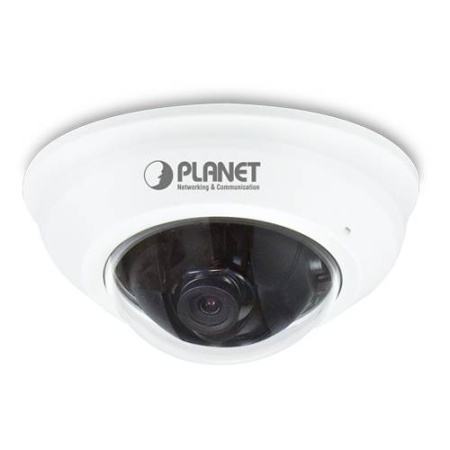

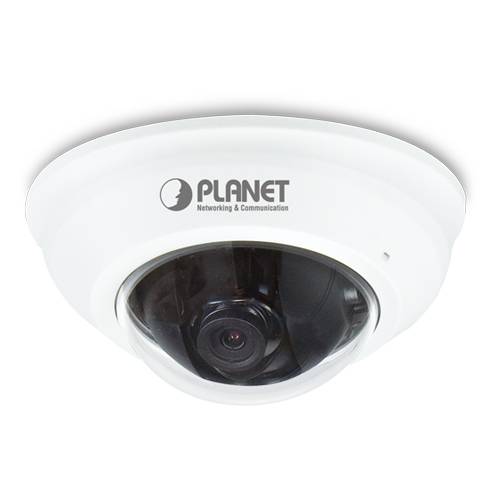

IP-камера Planet ICA-4200

Camera

Image device

1/2.5" 2 mega-pixel progressive scan CMOS sensor

Lens

3.6 mm fixed lens
Angle of view:
H: 60.79 degrees
V: 36.52 degrees
D: 67.88 degrees

Min. Illumination

0.5 lux @ F1.8

Effective Pixels

1920 x 1080 pixels


Video Encoder

H.264 / MPEG-4 / M-JPEG

High Resolution Mode

H.264@ 1080P
MPEG4@ 1080P
MJPEG@ D1

Frame Rate

Up to 30fps for all resolutions

Image Setting

Brightness, sharpness, contrast, saturation, mirror, AWB, WDR, BLC, text, time and image overlay

Streaming

Simultaneous multi-profile streaming
Streaming over UDP, TCP, HTTP, or HTTPS
M-JPEG streaming over HTTP
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264)

Audio

Audio Streaming

Built-in microphone

Audio Compression

G.711

Audio Input

Adjustable audio input gain

Network and Configuration

Standard

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af

Protocol

TCP/IP, IPv4, IPv6, UDP, ICMP, DHCP, NTP, DNS, PLANET DDNS/PLANET Easy DDNS, SMTP, FTP, HTTP, HTTPS, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP

Security

Password protection, IP address filtering, HTTPS,
QoS/DSCP

Users

5 clients on-line monitoring at the same time

System Integration

Application Programming Interface

Open API for software integration
ONVIF Compliant

Alarm Triggering

Intelligent video motion detection and external input
3-zone video motion detection

Alarm Events

File upload via SD card, FTP, email and SAMBA.

Video Buffering

Configurable Pre/Post alarm buffering

General

Power Requirements

IEEE 802.3af Class 3

Power Consumption

4W max.

Operating Temperature

-10 ~ 45 degrees C

Operating Humidity

20 ~ 80% (non-condensing)

Weight

180g

Dimensions (Φ x L)

95 x 50 mm

Emission

CE, FCC

Connectors

10/100 Mbps Ethernet, RJ-45
Built-in microphone
Digital in
Micro SD/SDHC card slot (Max. 32GB, Class 10)
Factory default reset button
