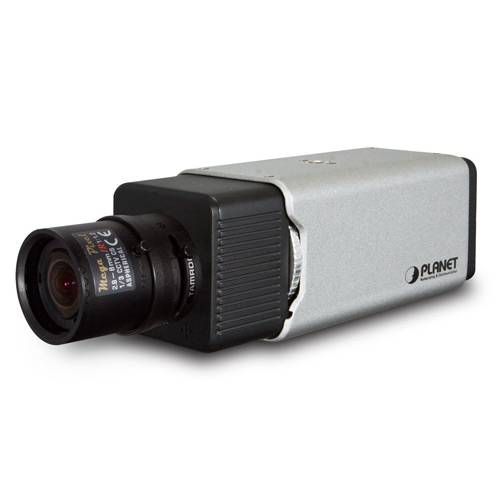

IP-камера Planet ICA-2500

Camera

Image device

1/3" type progressive scan CMOS sensor

Lens

Vari-Focal 2.8~8mm, F1.0 DC auto-iris, CS mount
Mechanical IR-cut filter

Angle of view:
Horizontal 1/3W- 100.1 x 72.9 degrees
Vertical 1/3T- 35.8 x 26.8 degrees

Min Illumination

1.0 lux @ F1.4

Effective Pixels

2592 x 1944 pixels


Video Compression

H.264 / MPEG-4 / M-JPEG

Video Resolution

5M mode
H.264: 2592 x 1944 / 1280 x 960 / 640 x 480 / 320 x 240

2M mode
H.264: 1080P / 1280 x 720 / 640 x 360 / 320 x 180
MPEG4: 1280 x 720 / 640 x 360 / 320 x 180
M-JPEG: 1080P / 1280 x 720 / 640 x 360 / 320 x 180

Frame Rate

15fps for 5M mode
30fps real-time for 2M mode

Image Setting

AE, AWB
3D noise reduction
WDR
Color, brightness, sharpness, contrast
Mirror / Flip
8 Privacy Masks
Text, time and date overlay

Streaming

Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP HTTPS
M-JPEG streaming over HTTP (server push)
Supports 3GPP mobile surveillance (MPEG4)
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)
ROI

Audio

Audio Streaming

2-way audio

Audio Compression

RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR

Microphone

External microphone input

Audio Output

Adjustable audio output gain

Network and Configuration

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T

Protocol

IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba

Security

Password protection, IP address filtering, HTTPS encrypted data transmission, user access log

Users

20 clients on-line monitoring at the same time

System Integration

Application Programming Interface

Open API for software integration
ONVIF Compliant

Alarm Triggers

Intelligent video motion detection and external input

Alarm Events

File upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alert output
Pre and post-alarm buffering

General

Power Requirement

12V DC, 1A
IEEE 802.3af Class 3

Power Consumption

7W max.

Operating Temperature

0 ~ 50 degrees C

Operating Humidity

20 ~ 80% (non-condensing)

Weight (includes LENS)

404g

Dimension (W x D x H)

125 x 62 x 58 mm

Emission

CE, FCC

Connectors

10/100/1000Mbps Gigabit Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
RS-485 interface for pan/tilt scanners control
External MIC input
Audio output
Composite video output (Max. resolution: D1 720 x 480 pixel)
Local video output: Selectable NTSC/PAL video signaling
Micro SD/SDHC card (Max 32GB, Class 6)
Factory default reset
