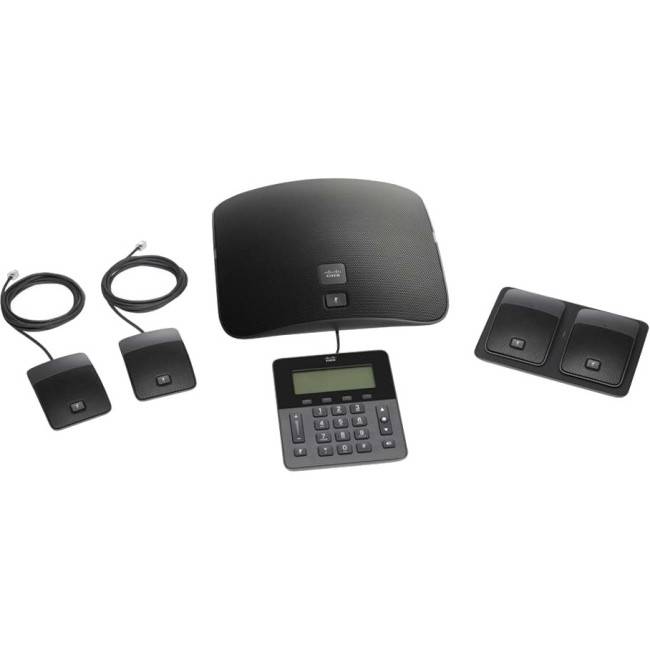

Комплекты Cisco CP-8831-MIC-WRLS представлены надежными устройствами для коммерческого применения, которые объединяют многофункциональность, точность передачи звука. Устанавливаются на малых и крупных предприятиях, признаны мощными и простыми в использовании. Выделяются оригинальным эргономичным дизайном.
|
Superior wideband acoustics |
● 160 Hz to 20 kHz, +/-3 dB. ● The latest in wideband codecs for maximum voice bandwidth. ● Enhanced speech quality and speaker recognition. |
|
Output |
92-dB SPL peak output* |
|
Expanded room coverage |
● 160-degrees conical pattern provides even coverage of listening area. ● Four Hemi-Cardioid microphones are perfectly spaced so that they combine to provide a 180-degree pick-up pattern around the device. Speech is captured at the same level at all points around the Cisco Unified IP Conference Phone 8831. ● Ability to grow to fit a variety of room needs. ◦ Small Office (base unit) ◦ Standard Conference Room (base unit and 2 wired or wireless extension microphones) ◦ Boardroom (daisy chaining two base units) ◦ Large Boardroom (daisy chaining two base units and 2 wired or wireless extension microphones) |
|
Dimensions (H x W x D) |
Base: 10.38 x 10.38 x 2.0 in. (15.05 x 26.35 x 5.08 cm) Control panel: 5.75 x 5.0 x 1.0 in. (14.61 x 12.7 x 2.54 cm) Microphones: 3.5 x 2.5 x 0.5 in. (8.89 x 6.35 x 1.27 cm) Charger tray: 6.5 x 4.5 x 0.75 in. (16.51 x 11.43 x 1.90 cm) |
|
Weight |
Base 3.50 lbs. (1,587.0 grams) DCU 0.56 lbs. (253.0 grams) Wired Microphones 0.15 lbs. (66.8 grams) Wireless Microphones 0.14 lbs. (64.7 grams) Charger 0.42 lbs. (191.9 grams) |
|
Display |
3.25 x 1.5 in. (8.26 x 3.81 cm); 396 x 162 pixels. |
|
Phone casing composition |
Polycarbonate acrylonitrile butadiene styrene (ABS) textured plastic. |
|
Power requirements |
The Cisco Unified IP Conference Phone 8831 is an interoperable IEEE 802.3af PoE (Class 3 device); 48 VDC is required; it can be supplied locally at the desktop using an optional AC-to-DC power supply (CP-PWR-CUBE-3=). Use of the power supply also requires the use of one of the corresponding AC country cords listed in Table 7 later in this document. Use of a power supply (CP-PWR-CUBE-3=) is required when using the Cisco Unified IP Conference Phone 8831 in a daisy-chain configuration. |
|
Operational temperature |
23~104°F (-5°C~40°C) |
|
Nonoperational temperature shock |
-13~158 (-25~70°C) |
|
Temperature altitude (operational) |
77°F (25°C) ambient condition to 9843 ft (3000m) |
|
Temperature altitude (nonoperational) |
Ambient condition to 15,000 ft (4572m) |
|
Temperature humidity (nonoperational) |
95% relative humidity |
