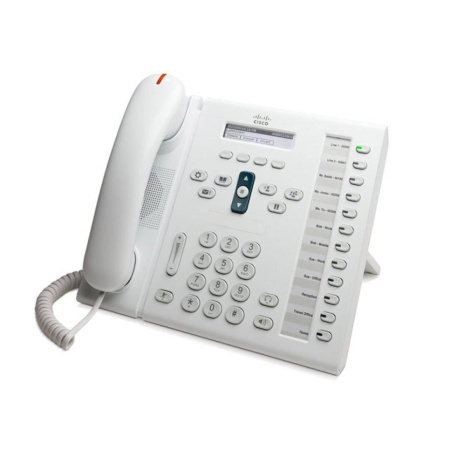

IP-телефон Cisco 6961 CP-6961-W-K9

Lighted Hold key

The key lights when pressed to put a call on hold and stays lit until the held call has been resumed, or flashes if one call is held while another is engaged; the key is dark when no calls are on hold.

Lighted Menu key

The key lights when pressed to access voicemail messages, call logs, network settings, user preferences, corporate directories, and XML services; it stays lit while menu items are active.

Deep-Sleep option

Power savings can be recognized by cycling power by time of day and day of week.

Co-branding

Co-Branding button allows customers to include their logo on the Cisco Unified IP Phone 6900 Series phones. Cisco has approved third-party vendors to produce the buttons.

Speakerphone

Full-duplex speakerphone allows for flexibility in placing and receiving calls.

Headset support

RJ9 interface to optional headset allows customers to enjoy additional options for place and receiving calls.

Lighted message waiting indicator

The key lights when there is new voicemail, and the light is visible on both the phone chassis and the handset; it stays lit until you process your new voicemail.

Graphical display

A 396 x 81 pixel-based, anti-glare, monochrome display with white backlighting provides scrollable access to calling features and text-based XML applications.

Four soft key buttons and a scroll toggle bar

Your calling options are dynamically present; the scroll toggle bar allows easy movement through the displayed information.

Network features

Network features include Cisco Discovery Protocol and IEEE 802.1 p/q tagging and switching.

Ethernet switch

The phone has a 10/100BASE-T Ethernet connection through two RJ-45 ports, one for the LAN connection and the other for connecting a downstream Ethernet device such as a PC.

Volume control

A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer.

Dual-position foot stand

The display is easy to view and the buttons and keys are easy to use; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone.

Multiple ring tones

The phone offers seven user-adjustable ring tones.

American Disabilities Act (ADA) features

The hearing-aid-compatible (HAC) handset meets the requirements set by the ADA; it also meets ADA HAC requirements for a magnetic coupling to approved hearing aids. The phone dialing pad also complies with ADA standards.

Signaling protocol support

The phones are supported in Cisco Unified Communications Manager and Unified Communications Manager Business Edition Versions 7.1.2 and later using Skinny Client Control Protocol (SCCP) and SIP is supported with Cisco Unified Communications Manager and Unified Communications Manager Business Edition Versions 7.1.5 and later.

Codec support

G.711a, G.711, G.729a, G.729b, G.729ab and iLBC audio-compression codecs are supported.

Voice quality

Comfort-noise generation and voice-activity-detection (VAD) programming is provided on a system basis.

Video Communications

Requires Cisco Unified Video Advantage 2.2 and the VT III camera for support.

Security features

Cryptography is not enabled by default and may only be enabled through a cryptographically enabled CUCM
