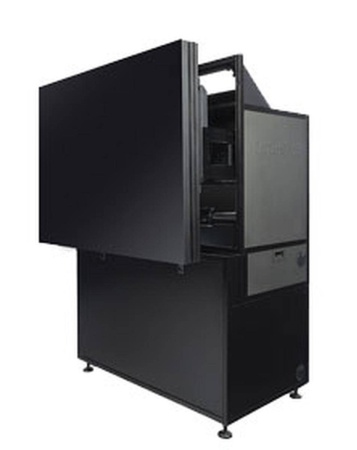

Display Cube Christie Entero HB 70” HD DLP FA

Дисплей Christie Entero HB 70” HD DLP FA

Артикул: HD DLP FA

По запросу

Под заказ

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Рассчитать доставку

Самовывоз - бесплатно

Почта для заявок: info@linkas.ru

Характеристики

Серия

—

Entero HB

Тип товара

—

Дисплей

Тип

—

DLP

Разрешение

—

1920x1080

Диагональ

—

70 дюймов

Условия гарантии

Текст гарантии

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Светодиодные дисплеи Christie являются производительными, безотказными в работе, надежными, подготовлены для функционирования в режиме 24/7. Обеспечивают высокую четкость изображения, широкую цветовую палитру, признаны экономичными в обслуживании. Управление осуществляется с помощью Wi-Fi через любое беспроводное устройство.

Контроллеры Christie организуют обмен данными в любом удаленном сегменте. Система снабжена удобным веб-интерфейсом, USB-интерфейсом, API-интерфейсом, выделяется отказоустойчивостью, включает возможность синхронизации для создания видеостен. Настройку и усовершенствование параметров можно проводить без отключения.

Оборудование оснащено улучшенным функционалом, простое в использовании, установка и подключение осуществляется за короткий отрезок времени.

Product make-up	Cube CF70-4001 Projection engine RPMHD-LED02 Screen1 SF70-XP01
Imaging technology	Imaging Superior 0.95" 1-chip DLP®, Darkchip Texas Instruments Native resolution HD (1920 x 1080) \| 16:9 aspect ratio Illumination LED (Red, Green, Blue) \| OSRAM \| Redundant LED Architecture
Cross prism screen	Technology optical: Fresnel/cross prism DNP Screen gap (image to image)2 0.2-1.7mm adjustable 1.7mm nominal recommended for front access @ 25°C View-ability 180° Horizontal 120° Vertical +/- 35° Horizontal ½ gain +/- 27° Vertical ½ gain
System brightness	Brightness Up to 520 cd/m2 in high brightness mode Up to 403 cd/m2 in normal mode Up to 331 cd/m2 in eco mode Control manual and continuous automatic (ArraySync) control to manage brightness uniformity across large display walls
Color	Temperature range 3200°K to 9300°K Gamut wider than EBU White balance uniformity 0.0035 ∆u’ ∆v’ Control ArraySync™ automatic color management with 12-bit processing to precisely and continuously manage uniformity across large display walls without user intervention precise tri-stimulus color sensing (x,y,z) for superior color management display light engine is factory calibrated using scientific-grade spectral radiometers for high precision color management comprehensive controls for manual setup if desired
Optical	Brightness uniformity >95% Contrast ratio up to 2200:1 full field without using dynamic or artificial techniques
Audible noise	Noise power level <30 dBA typical at 1 meter distance fr om screen center
Inputs	Standard 1 x digital DVI-D 165 MHz maximum pixel clock frequency single link DVI loop-through capability up to 25 displays on a single loop-through chain HDCP support included (operating at native resolution) Optional expansion secondary DVI-D input with automatic fail detection and switch over Thinklogical direct fiber input card Compatibility all Christie video wall processors and most standard sources
Control/networking	Methods IR full function remote keypad external computer or control device via Wi-Fi and/or Ethernet and/or RS-232 Wi-Fi (can be disabled with no radio frequency transmission if required) Physical ports 1 x RS-232 2 x Ethernet RJ45 Ethernet bridging (daisy chain) limit up to 25 Ethernet bridges, projector to projector without external switch
Monitoring	Status display 2 line by 16 character OLED display Diagnostics via status display, RS-232 and Ethernet/Wi-Fi (can be disabled with no radio frequency transmission if required)
Upgradability	Software/firmware fast, on site firmware upgrades via USB, Ethernet or RS-232
Options	Accessories full function IR remote keypad secondary DVI-D input module Thinklogical direct fiber input card cube pedestals alternate screen types motorized 6-axis accessory required
Physical characteristics	Screen size (in.) 61.1” x 34.4” Screen size (mm) 1551 x 873mm Cube depth (total) 39.7” (1009mm) Weight - cube 220lbs (100kg) Weight - screen 66lbs (30kg) Weight - engine 55lbs (25kg) Cube stacking lim it3 5 cubes high Service access remote control release-and-lift screen system
Environment	Operating temperature cube: 40° to 90°F, 5° to 35°C engine: 32° to 104°F, 0° to 40°C screen: 63° to 88°F, 17° to 31°C Non-operating temperature cube: -4° to 122°F, -20° to 50°C engine: -13° to 158°F, -25° to 70°C screen: -4° to 95°F, -20° to 35°C Humidity cube/engine: 20% to 80% NC, 35% to 65% NC for storage screen: 40% to 60% NC Altitude 0 to 3,000m, 0 to 10,000 feet Seismic the CF70-4001 cube system, up to a stack height of 5, meets the loading and stability requirements of the BOCA National Building Code under seismic forces associated with Zone 4 seismic activity. Note: Tiebacks and concrete anchors are required to achieve this rating.
Power rating (projection engine)	Voltage range 100-240V AC 50/60Hz 4.3A Power consumption 150W / 210W / 250W watts (eco / normal / high brightness) Dissipation 529 / 717 / 853 BTU/hr (eco / normal / high brightness)
Reliability and serviceability	MTBF/MTTR MTBF: >60,000 hours for all major modules 76,000 hrs for power supply MTTR: <15 minutes via modular servicing Cooling fan lifetime >100,000 hours LED lifetime >80,000 hours in eco mode >60,000 hours in normal operating mode
Regulatory (projection engine)	Directives/certifications (EC) 2011/65/EU (RoHS) 2012/19/EU (WEEE) Regulation (EC) No. 1907/2006 (REACH) CAN/CSA C22.2 No. 60950-1 UL 60950-1 IEC 60950-1 FCC, Part 15, Subpart B, Class A ICES/NMB003 (A) EN55022/CISPR22 Class A EN55024/CISPR24 The product is designed to comply with rules and regulations required for the product to be sold in various regional markets, including: USA/Canada, EU, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, India, Russia, South Africa, and Saudi Arabia
