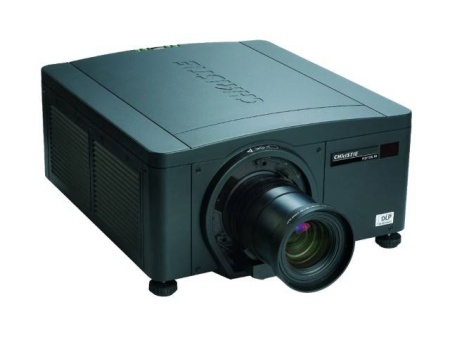

Инсталляционный проектор Christie Roadster S+10K-M

• Dual lamp: 11,550 centre (10,500 ANSI, 10,518 ISO) lumens
• Single lamp: 5,775 centre (5,250 ANSI​, 5,259 ISO) lumens

• 2500-10,000:1 using contrast aperture (full on, full off)
• 650:1 ANSI (typical)

• 3-chip 0.95" DLP­
• SXGA+ (1400 x 1050) resolution

• Dual 350W PVIP
• High power: 1500 hrs @ 350W
• Low power: 2000 hrs @ 300W

• HDTV formats VGA through to QXGA (2048 x 1536)
• Accepts all current HDTV/DTV formats
• Multi-standard video decoder
• Horizontal and vertical scaling, all inputs

• ​Twin DisplayPort Input card
• Dual-link DVI
• 3G SD/HD-SDI
• Video decoder

• ​​Analog 5 BNC

• Horizontal: 15 to 120 kHz
• Vertical: 23.97 to 150 Hz

• 165 MHz

• RS232 in/out
• RS422 in
• Ethernet (10/100)
• USB device
• GPIO (RS232 9-pin male connector)
• Built-in backlit LCD keypad
• Remote control (with optional wired XLR connection)

• Dust sealed, 3-Chip DMD light engine
• Motorized horizontal and vertical lens offset
• Scheimpflug (tilt) adjustment
• Built-in light shutter
• Tool-free lens insertion system

• ILS lens 0.73:1 SX+/0.67:1 HD*
• ILS lens 1.2:1 SX+/1.1:1 HD

• ILS lens 1.25-1.6:1 SX+/1.16-1.49:1 HD**
• ILS lens 1.5-2.0:1 SX+/1.4-1.8:1 HD
• ILS lens 2.0-2.8:1 SX+/1.8-2.6:1 HD
• ILS lens 2.8-4.5:1 SX+/2.6-4.1:1 HD
• ILS lens 4.5-7.3:1 SX+/4.1-6.9:1 HD
• ILS lens 7.3-11.2:1 SX+/6.9-10.4:1 HD

• +/- 100% Vertical
• +/- 50% Horizontal
• (* ±23%V / ±13%H)
• (** ±70%V / ±45%H)

• Dual-link DVI input card
• Dual SD/HD-SDI input card
• Video decoder
• User manual
• IR remote
• Line cord
• Stacking frame

• Coarse dust filter
• Fog juice filter
• Ceiling mount
• Analog BNC input card
• Dual-link DVI input card
• Dual SD-HD-SDI input card
• Video decoder
• ​DMX512 interface card

• LiteLOC™
• Comprehensive Colour Adjustment (CCA™)
• Embedded Christie Twist™ image warping and edge-blending
• Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
• Multi-windowing and screen processing (up to a 2x3 array)
• Contrast a​perture
• Menus in five languages
• 99 channel memories
• Auto setup
• Digital keystone correction
• Dust sealed engine, filter-free design
• Motorized yellow notch filter (HD & WUXGA models only)
• Built-in portrait display capabilities*
• 3D upgradable

*Christie M Series stacking frame is required in portrait orientation.

• 110-240V AC 50/60 Hz operating voltage
• 13.2 A @100V operating current
• 1320 W power consumption
• 4508 BTU/hr dissipation

• (L x W x H): 22.1 x 19.7 x 10.2" (561 x 500 x 259mm)
• Weight: 55 lb (25 kg)
• Shipping weight: 87 lb (39kg)
• Shipping dimensions - (LxWxH): 31.3 x 24.2 x 28.1" (795 x 615 x 715mm)

• Temp: 40 to 104° F (5 to 40° C)
• Humidity: 10-80% non-condensing
