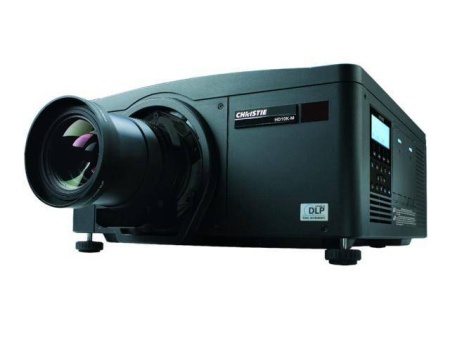

DLP projector Christie Mirage HD14K-M

• Dual lamp: 12,000 ANSI lumens (13,500 centre, 13,500 ISO)
• Single lamp: 6000 ANSI lumens (6,750 centre, 6,750 ISO)

• 2,500:1 (full on, full off)
• 650:1 ANSI (typical)

• 90% brightness uniformity

• 3-chip 0.95" DMD

• HD (1920 x 1080)

• Dual 450W NSH

• High power: 175​0 hrs @ 450W
• Low power: 2000 hrs @ 360W

• Twin DisplayPort input card
• 2x Dual-link DVI + VGA

• ​Dual-link DVI

• SD/HD-SDI
• Video decoder
• Twin HDMI
• DMX512 interface

• HDTV formats VGA through to QXGA (2048 x 1536)
• Accepts all current HDTV/DTV formats
• Multi-standard video decoder
• Horizontal and vertical scaling, all inputs

• Native 3D |48-60Hz per eye
• Frame doubled 3D | 24-30Hz per eye
• Dual input 3D | 48-60Hz per eye
• HDMI1.4a | Frame packed and Side-by-Side Horizontal

• 330 MHz

• Horizontal: 15 to 120 kHz
• Vertical: 23.97 to 150 Hz

• RS232 in/out
• RS422 in
• Ethernet (10/100)
• USB device
• GPIO (RS232 9-pin male connector)
• Built-in backlit LCD keypad
• Remote control (with optional wired XLR connection)

• ILS Lens 0.67:1 HD*
• ILS Lens 1.1:1 HD

• ILS Lens 1.16-1.49:1 HD**
• ILS Lens 1.4-1.8:1 HD
• ILS Lens 1.8-2.6:1 HD
• ILS Lens 2.6-4.1:1 HD
• ILS Lens 4.1-6.9:1 HD
• ILS Lens 6.9-10.4:1 HD

• All lenses ±120% Vertical ±42% Horizontal except those noted below

* 0.67:1 fixed lens ±35%V ±12%H ** 1.16-1.49:1 zoom lens ±100%V ±40%H

• IR remote
• Power cord
• GPIO 3D sync cable
• Twin DisplayPort input card​

• Coarse dust filter
• Fog juice filter
• Ceiling mount
• Ceiling mount extension
• ILS lens adapter kit
• Stacking frame
• Christie® AutoStack™

• Christie® AutoStack™ Premium

• LiteLOC™
• Comprehensive Colour Adjustment (CCA™)
• Embedded Christie Twist™ image warping and edge-blending
• Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset for all lenses
• Auto setup
• Digital keystone correction
• Menus in five languages
• 99 channel memories
• Black level blending
• 24/7 operation
• Built-in portrait capabilities

• 100-240V AC 50/60 Hz

• 15A @ 100V AC

• 1500W

• 5,118 BTU/hr

• (LxWxH): 22.1 x 19.7 x 10.2" (561 x 500 x 259mm)

• (LxWxH): 29.0 x 27.0 x 24.6" (735 x 685 x 625mm)

• 55lbs (25kg)

• 80lbs (36kg)

• Temp: 40 to 104° F (5 to 40° C)
• Humidity: 20-80% non-condensing
