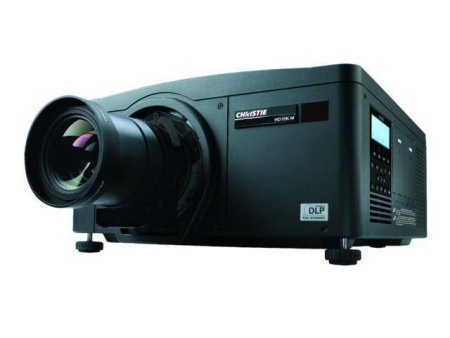

DLP проектор Christie Mirage DS+10K-M

• 10,500 ANSI lumens
• 11,500 centre lumens
• 10,518 ISO lumens
• 2,500-10,000:1 FOFO
• 650:1 ANSI
• Contrast aperture

• 3DLP 0.95”
• SXGA+ 1400 x 1050
• As little as one frame

• Native dual-link DVI-D
• Twin DisplayPort input card
• Frame-doubled 3D -  dual-link DVI, VGA
• (HDMI, analogue BNC and SDI optional)
• Pixel clock: 330MHz

• H - 15 kHz to 120 kHz
• V – 23.97 Hz to 150 Hz (up to 120Hz maximum output)*

• RS232 in/out
• RS422 in
• Ethernet (10/100)
• USB device
• GPIO (RS232 9-pin male connector)
• Built-in backlit LCD keypad
• Remote control (with optional wired XLR connection)
• Slot 1-2 standard (populated):  dual-link DVI-D (330MHz) and VGA (165MHz)

• Slots 3-4 unpopulated
• Full bandwidth analogue BNC
• Dual-link DVI input card (330MHz), VGA (165MHz)
• Dual SD/HD-SDI
• Video decoder
• Twin HDMI

• Motorized horizontal and vertical lens offset
• Scheimpflug (tilt) adjustment
• Built-in light shutter
• Dual PvIP 350W lamps
• 1,500 hrs @350W, 2,000 hrs @300W

• Christie ILS lens 0.73:1 SX+ / 0.67:1 HD*
• Christie ILS lens 1.2:1 SX+ / 1.1:1 HD

Lenses (zoom)

• Christie ILS lens 1.25-1.6:1 SX+ / 1.16-1.49:1 HD**
• Christie ILS lens 1.5-2.0:1 SX+ / 1.4-1.8:1 HD
• Christie ILS lens 2.0-2.8:1 SX+ / 1.8-2.6:1 HD
• Christie ILS lens 2.8-4.5:1 SX+ / 2.6-4.1:1 HD
• Christie ILS lens 4.5-7.5:1 SX+ / 4.1-6.9:1 HD
• Christie ILS lens 7.5-11.2:1 SX+ / 6.9-10.4:1 HD

• +/- 100% Vertical
• +/- 50% Horizontal
• (* +/-23%V   +/- 13%H)
• (** +/-70%V   +/- 45%H)

• Operating voltage: 100V AC to 240V AC @ 50/60 Hz
• Operating current: 12A @ 100 V
• Power: 1320 W
• Dissipation: 4508 BTU/hr

• Embedded Christie Twist™ - internal advanced warping and edge-blending
• LiteLOC™
• ​Contrast aperture
• Dust-sealed, filter-free design
• Reduced power requirements (as compared to competitive products on the market today) – at maximum brightness the unit only draws 1320W; standby power consumption (phantom power draw) is less than 20W.
• Reduced noise levels
• LCD keypad – active keys are amber to indicate whether function selected will be seen by the audience
• Built-in portrait display capabilities*

*Christie M Series stacking frame is required in portrait orientation.

• User manual
• IR remote
• Line cord
• Two dual-link DVI-D cards
• 3D sync cable

• Coarse dust filter
• ILS lens adapter kit
• Stacking frame dual HD/SDI input card
• Twin HDMI input card
• Video decoder input card*

*may not include 3D support

• Size: (L x W x H): 22.1 x 19.7 x 10.2" (561 x 500 x 259mm)
• Weight: 55 lb (25 kg) (without lens)
• Shipping weight: 87 lb (38 kg) (without lens)

• Operating temperature: 40-104°F (5-40°C)
• Humidity (non-condensing): 20-80% non-condensing
