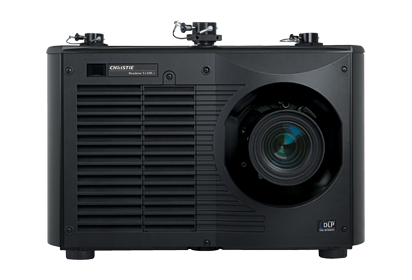

Проектор Christie Roadster S22K-J


• Brightness: 22,000 center (20,000 ANSI) lumens
• Contrast: 1600-2000:1 full field | 650:1 ANSI
• Uniformity: 90% brightness uniformity

Display

• Type: 3DLP 0.95” DMD
• Native resolution: SXGA+ (1400 x 1050)

Lamp

• Type: 3.0kW Xenon bubble lamp module
• Life: 750 hours typical lamp life

Input

Standard

• Analog
• Dual link DVI
• SD/HD-SDI
• Video Decoder

Optional

• Analog
• Dual link DVI
• SD/HD-SDI
• Video Decoder
• Twin HDMI

Signals

• HDTV formats VGA through to QXGA (2048 x 1536)
• Accepts all current HDTV/DTV formats
• Multi-standard video decoder
• Horizontal and vertical scaling, all inputs

Pixel clock

• 165 MHz

Scan rates

• 15 kHz to 120 kHz Horizontal
• 23.97 Hz to 150 Hz Vertical

• RS232 In/Out
• RS422 In
• Ethernet (10/100)
• USB Device
• GPIO (RS232 9 Pin male connector)
• Built-in, backlit LCD keypad
• Remote control (with optional wired XLR connection)

Lens options

Fixed

• ILS Lens 0.73:1 SX+ / 0.67:1 HD*
• ILS Lens 1.2:1 SX+ / 1.1:1 HD

Zoom

• ILS Lens 1.25-1.6:1 SX+ / 1.16-1.49:1 HD**
• ILS Lens 1.5-2.0:1 SX+ / 1.4-1.8:1 HD
• ILS Lens 2.0-2.8:1 SX+ / 1.8-2.6:1 HD
• ILS Lens 2.8-4.5:1 SX+ / 2.6-4.1:1 HD
• ILS Lens 4.5-7.5:1 SX+ / 4.1-6.9:1 HD
• ILS Lens 7.5-11.2:1 SX+ / 6.9-10.4:1 HD

Offsets

• +/- 100% Vertical
• +/- 50% Horizontal
• (* +/-23%V   +/- 13%H)
• (** +/-70%V   +/- 45%H)

Accessories

Standard

• IR remote
• Line cord

Optional

• 3.0kW Xenon lamp
• 3.0kW Xenon lamp bare bulb kit
• Bulb alignment tool
• Analog input card
• Dual link DVI input card
• Video decoder input card
• Dual SD/HD-SDI input card
• Twin HDMI input card
• DMX512 interface card
• ILS lens adapter kit
• Fog juice filters
• Edge-blending kit
• Remote IR sensor
• 3D upgrade kit
• Christie AutoStack™

Enhanced feature sets

• 3D upgradable
• Embedded Christie Twist™
• Embedded image tiling
• Intelligent Lens System (ILS)
• Liquid cooling
• Advanced block artifact reduction
• ChristieNET ™ Web interface
• User-friendly, intuitive LCD keypad
• Advanced Loop-Thru twin HDMI card
• Set-up lights
• Lamp memory module
• User replaceable lamps
• Advanced, 10-bit processing
• Automatic shut off and ECO mode
• Dust-sealed light engine
• SNMP (simple network management protocol)
• DHCP (dynamic host configuration protocol)
• Hybrid stack
• Compatibility with legacy accessories

Power requirements

• Operating voltage: 200 VAC to 240 VAC @ 50/60 Hz
• Max current: 20 A @200V
• Max power: 4000 W
• Dissipation: 13,650 BTU/hr

Dimensions

• Dimensions: (L x W x H): 32.0 x 24.5 x 16.5" (815 x 621 x 419mm)
• Shipping dimensions: (L x W x H): 41.0 x 32.5 x 29.5" (1041 x 825 x 749mm)
• Weight: 160 lb (72.5 kg) (without lens)
• Shipping weight: 200 lb (91 kg)

• Temp: 40 to 104° (5 to 40° C)
• Humidity: 20 - 80% noncondensing

Regulatory

• Regulatory Approvals/Markings: Directives (EC) 2002/95/EC (RoHS); 2002/96/EC (WEEE); Regulation (EC) No. 1907/2006 (REACH)
• CAN/CSA C22.2 No. 60950-1
• UL 60950-1
• IEC 60950-1
• FCC, Part 15, Subpart B, Class A
• EN55022/CISPR22 Class A
• EN55024 / CISPR24
• Certifications marks (check with CDS for latest update): cULus (Canada & US), CE (EU), CCC (China), GoST-R (Russia), KC (Korea), PSE (Japan), C-Tick (Australia & New Zealand), South Africa

• Three years parts and labor (including light engine)
