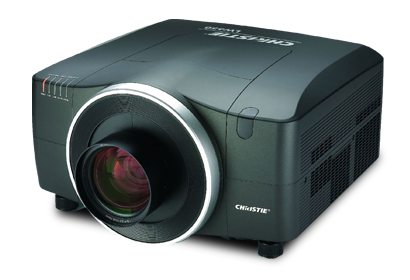

Проектор Christie LW720

• Up to 7200 ANSI lumens
• 2500:1 contrast ratio (with Iris on)
• >80% brightness uniformity (corner to corner)

• 3 x 1.22” Inorganic LCDs
• Native WXGA 1366 x 800 resolution

• Single 350W UHB Lamp
• Normal mode 2000 hours, eco mode 3000 hours

• Up to UXGA*/SXGA+/SXGA/WXGA(Native)/XGA/SVGA/VGA/MAC

• 525i(480i), 525p(480p), 625i(576i), 1125i (1080i@50/60), 750p(720p@50/60) 1125p(1080p@50/60); NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

• TMDS 27MHz ~ 150MHz

• Vertical frequency 56 ~ 120Hz
• Horizontal frequency 31.5 ~ 106kHz

• Video input - composite video: RCA jack x 1, BNC x 1; s-video: Mini-Din 4 pin x1; component video: RCA jack x3
• RGB input - analog RGB1: 15 pin D-Sub shrink x2; analog RGB2: BNC x5
• Digital input - HDMI x 1; DVI-D x 1
• RGB monitor input - 15 pin D-Sub
• Control - Input: 9 Pin D-Sub x 1 for RS-232C (Serial); output: 9 Pin D-Sub x 1 for RS-232C (Serial)
• Wired remote control - input: 3.5 Stereo mini jack x 1; output: 3.5 Stereo mini jack x 1
• Network (LAN) - RJ-45 x1 (wired LAN)

• Motorized zoom, focus and lens shift
• Vertical lens shift up/down
• Horizontal lens shift left right
• Mechanical Light Shutter

Ships without a lens. Choose the lens appropriate for your application

• Lens 0.5-0.6:1 Ultra Short*
• Lens 1.2-1.5:1 Short*
• Lens 1.5-2.2:1 Short*
• Lens 2.2-2.9:1 Standard*
• Lens 2.8-5.2:1 Long*
• Lens 5.0-9.2:1 Ultra Long*

*Lens Memory settings available

• Power cord (US, UK, Euro code)
• Dsub15 pin (VGA cable)
• Wireless remote control with "AA" batteries x2
• Lens adapter
• User manual

• Replacement lamp
• Replacement filter
• Additional lens adapters

• Built in shutter
• Security bar
• Customizable start up screen
• Blackboard/Whiteboard/Date time picture modes
• Lens memory *on selected lenses
• Aspect ratio and signal setting (16:10, 16:9, 4:3, Native, Full, Normal)
• Split screen mode
• Color space settings (AUTO, RGB, SMPTE240, REC709, REC601)
• Digital keystone H/V
• Closed caption option (NTSC)
• Remote control with frequency options
• Customer resolution setup (computer signal)
• Network bridge option
• Security menu (password, transition detect)

• Operating voltage: 110-120 V AC +/- 10%; 220-240 V AC +/- 10%; 50Hz – 60Hz nominal
• Operating current: 6.0A max at 110V AC; 3.1A max at 220V AC
• Power: 540W
• Dissipation: 1845 BYU/hr

• Body dimensions, without lens: 18.5” (L) x 18.7”(W) x 10.7” (H); 469 (L) x476(W) x 272 (H) mm
• Shipping size: 22.9” (L) x 22.6” (W) x 16.8” (H); 582 (L) x 574 (W) x 426 (H) mm
• Projector weight: 29.1 lbs (13.2kg) without lens
• Shipping weight: 41.0 lbs (18.6kg)

• 42 dBA normal and 34 dBA eco

• Operating temperature: 5ºC to 35ºC / 41ºF to 95ºF
• Storage temperature: -20ºC to 60ºC / -4ºF to 140ºF
• Humidity: 10% to 85% (non-condensing)
• Altitude: 0 to 75000 feet / 0 to 2286 m

• This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC):
• FCC Part 15, Subpart B Class A
• CISPR22/EN55022
• CISPR24/EN55024
• UL 60950-1 first edition
• CAN/CSA-C22.2 No 60950-1-03 first edition
• IEC60950-1:2001
• 2002/95/EC RoHS

• Projector: 3 years parts and labor
• Lamp: 500 hours or one year (whichever comes first)
• Contact an authorized Christie representative for full details of our limited warranty
