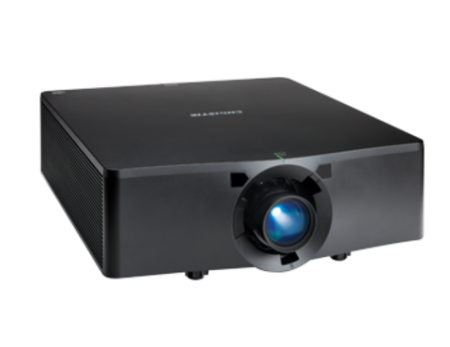

Проектор Christie D20WU-HS

Brightness

• 20,600 ISO lumens
• 18,500 ANSI lumens

Color wheel

• 4 segment (RGBY) - 2X or 3X speed

Contrast (nominal)

• Full on/off (Christie RealBlack enabled): 2,000,000:1
• Dynamic contrast: 5000:1
• Full on/off (Christie RealBlack disabled): 1200:1
• ANSI 250:1

Type

• 1 x 0.96” DMD

Native resolution

• 1920 x 1200 (2,304,000 pixels) 16:10

Type

• Laser phosphor with Christie BoldColor Technology

Typical lifetime

• 20,000 hours to 50%

Standard

• HDMI x 2 (one on rear panel, one on bottom of projector, independently selectable)
• 3GSDI x 1 (BNC)
• DVI-D x 1 (digital only)
• HD15 x 1
• USB x 1 (type A) - image viewer or WiFi dongle (optional)
• HDBaseT (RJ45 x 1)

3D

• HDMI 1.4, HDBaseT - frame packed, top/bottom, side-by-side
• Up to 120Hz output
• 3D Sync In (BNC) - for genlocking projectors
• 3D Sync Out (BNC) - for genlocking projectors or controlling emitters

Signals

• HDTV formats VGA through to WUXGA (1920 x 1200)
• Horizontal and vertical scaling while maintaining aspect ratio, all inputs

Pixel clock

• 162 MHz

Scan rates

• Horizontal: 15 kHz to 91 kHz
• Vertical: 24 Hz to 85 Hz

Monitor out (loop through)

• 3GSDI x 1 (BNC)
• DVI-D x 1 (Digital out)

• RS232 In
• Control via HDBaseT
• Ethernet (10/100) RJ45
• Built-in backlit keypad
• Wired remote control (3.5mm stereo) - loop out available for daisy chaining
• 12VDC trigger at 200mA (ID:2.5mm)

Standard

• IR remote w/ wired remote jack (wire not included)
• AC line cords for projector head
• User manual

Optional

• Christie One Rigging Frame
• Lens adapter for E Series lenses
• 1DWUSB-BGN (wireless dongle for video and control)
• HS fog filter covers + filters (order once per projector then only filters refills)
• HS fog filter refills (1 set)
• Christie One Mount Plus
• One Mount Extender Rod
• One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod)
• Replacement remote control

Standard:

• Christie Twist™

Optional:

• Christie Twist Premium and Twist Pro
• Christie Mystique™ automated camera-based alignment

• Boresight adjustable
• Motorized horizontal and vertical lens offset (memory available)
• Motorized zoom and focus adjustment (memory available for full ILS lenses)

Lenses

• 0.84-1.02:1 zoom lens (no zoom/focus memory) - adapted 1.2-1.5:1 E Series lens
• 1.02-1.36:1 zoom lens (no zoom/focus memory) - adapted 1.5-2.0:1 E Series lens
• 1.2-1.5:1 zoom lens (full ILS)
• 1.5-2.0:1 zoom lens (full ILS)
• 2.0-4.0:1 zoom lens (full ILS)
• 4.0-7.0:1 zoom lens (full ILS)​

Operating voltage

• Normal: 200-240VAC @ 60/50 Hz with a 10A fuse

Power consumption

• Normal mode: 1880W
• ECO1 mode: 1504W
• ECO2 mode: 940W

Operating current

• WLAN mode: <8.0W
• Standby mode: <0.5W

Dissipation

• Normal mode: 6653 BTU/hr

• Typical: 45dB(A)
• Eco mode: 39dB(A)

Dimensions

• (L x W x H) 26.65 x 23.46 x 7.99" (677 x 596 x 203mm) without feet

Weight (without lens)

• 93.7 lb (42.5 kg)

Shipping dimensions

• (L x W x H) 36.34 x 33.19 x 20.20" (923 x 843 x 513mm)

Shipping weight

• 119 lb (54 kg)

• Temp: 0 to 40° C (32 to 104° F)
• Humidity: 0 - 85% non-condensing

Contact Christie for the timing of certifications:

• UL/CSA/IEC 60950-1
• FCC Class A
• CE
• FDA
• CCC
• KC
• PSE
• CU
• SABS
• BIS
• VCCI
• RCM
• Ukr
• TER
• SASO

This product conforms to all relevant European directives, standards, safety, health and environmental concerns

• RoHS
• REACH
• WEEE

• Three years parts and labor on the projector
• Three years or 15,000 hours parts and labor on the illumination system*
• Contact an authorized Christie representative for full details of our limited warranty
