Наша компания имеет большой склад устройств Fortinet и более 260 единиц комплектующих к ним. Ассортимент продукции постоянно обновляется. Квалифицированные инженеры готовы провести консультации по подбору оборудования, которое максимально эффективно выполнит поставленные задачи и защитит от вредоносных программ. Получить расчетную стоимость заказанных товаров можно после заполнения опросного листа.
| Model |

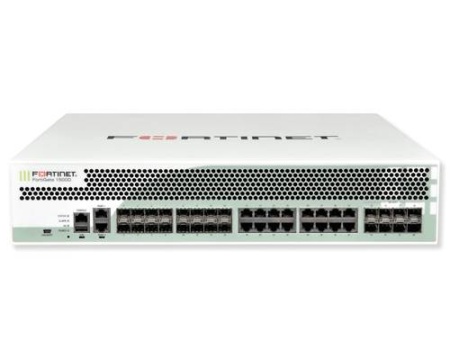

FG-1500DT |
|
Hardware Specifications |
|
|
Hardware Accelerated 10 GE SFP+ / GE SFP Slots |
4 |
|
Hardware Accelerated GE SFP Slots |
16 |
|
Hardware Accelerated 10 GE RJ45 Ports |
4 |
|
Hardware Accelerated GE RJ45 Ports |
16 |
|
GE RJ45 Management / HA Ports |
2 |
|
USB Ports (Client / Server) |
1 / 1 |
|
Console Port |
1 |
|
Onboard Storage |
2x 240 GB |
|
Included Transceivers |
2x SFP+ (SR 10GE) |
|
System Performance |
|
|
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
80 / 80 / 55 Gbps |
|
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
80 / 80 / 55 Gbps |
|
Firewall Latency (64 byte, UDP) |
3 ?s |
|
Firewall Throughput (Packet per Second) |
82.5 Mpps |
|
Concurrent Sessions (TCP) |
12 Million |
|
New Sessions/Second (TCP) |
300,000 |
|
Firewall Policies |
100,000 |
|
IPsec VPN Throughput (512 byte) |
50 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
20,000 |
|
Client-to-Gateway IPsec VPN Tunnels |
50,000 |
|
SSL-VPN Throughput |
4 Gbps |
|
Concurrent SSL-VPN Users (Recommended Maximum) |
10,000 |
|
IPS Throughput (HTTP / Enterprise Mix) |
15 / 13 Gbps |
|
SSL Inspection Throughput |
10.5 Gbps |
|
Application Control Throughput |
12 Gbps |
|
NGFW Throughput |
7 Gbps |
|
Threat Protection Throughput |
5 Gbps |
|
Dimensions |
|
|
Height x Width x Length (mm) |
89 x 438 x 554 |
|
Weight |
34.39 lbs (15.6 kg) |
|
Form Factor |
Rack Mount, 2 RU |
|
Power |
|
|
AC Power Supply |
100–240V AC, 50–60 Hz |
|
DC Power Supply (FG-1500D-DC) |
– |
|
Maximum Current |
110V / 8A, 220V / 4A |
|
Power Consumption (Average / Maximum) |
230 / 350 W |
|
Heat Dissipation |
1,193 BTU/h |
|
Redundant Power Supplies |
Yes, Hot swappable |
|
Environment |
|
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
20–90% non-condensing |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
