Серия является многофункциональной, предоставляет широкий спектр возможностей. Гарантирует защиту инвестиций, минимизирует стоимость владения. Снабжена интуитивно понятным интерфейсом, легко настраивается.
|
Ports |
48 1G/10GBASE-X SFP+ ports 4 40G QSFP+ ports |
|
Expansion Slots |
NA |
|
Modular Power Slots |
2 |
|
Fan Slots |
3 |
|
Expansion Modules |
NA |
|
Management Ports |
1 console port |
|
Switching Capacity |
2560G bps |
|
Packet Forwarding Rate |
960Mpps |
|
Max. Number of 10GE Ports |
48 |
|
Max. Number of 40GE Ports |
4 |
|
Port Buffer |
9MB |
|
ARP Table |
Up to 16K |
|
MAC Address |
Up to 128K |
|
Routing Table Size |
16K/8K |
|
ACL Entries |
Up to 1500 |
|
VLAN |
Port based VLAN, MAC based VLAN, Super VLAN, Private VLAN, protocol based VLAN, IP subnet-based VLAN, GVRP |
|
QinQ |
Basic QinQ, Flexible QinQ, 1:1 VLAN switching, N:1 VLAN switching |
|
Link Aggregation |
Support LACP (802.3ad) |
|
Port Mirroring |
Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN |
|
Spanning Tree Protocols |
IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard |
|
DHCP |
DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay |
|
Multiple Spanning Tree (MST) Instances |
64 |
|
Maximum Aggregation Port (AP) |
Up to 2,048 |
|
SDN |
OpenFlow 1.0 |
|
VSU (Virtual Switch Unit) |
Support (up to 8 stack members，to ensure the effectiveness of the use, 4 members are recommended) |
|
L2 Features |
MAC, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP filter, MLD snooping, DHCP, Jumbo frame, RLDP, LLDP, REUP, G.8032 ERPS, Layer 2 protocol tunnel |
|
Layer 2 Protocols |
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1d, IEEE802.1w, IEEE802.1s |
|
Layer 3 Features |
Static routing, RIP, OSPF, OSPF v3, BGP, BGP4+, RIP, RIPng, IS-IS, IS-IS v6 |
|
Layer 3 Protocols (IPv4) |
Static routing, RIP, OSPF, IS-IS, BGP |
|
IPv4 Features |
Ping, Traceroute, URPF, GRE tunnel (4 over 6), GRE tunnel (6 over 4), IPv4 VRF |
|
IPv6 Features |
ICMPv6, IPv6 Ping, IPv6 Tracert, Manually configure local address, Automatically create local address, Neighbor Discovery, 0-64 bit mask, 65-128 bit mask, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 VRF, IPv6 extender option head |
|
Other Protocols |
FTP, TFTP, DNS client, DNS static |
|
Dimensions |
44.0 x 440 x 420 |
|
Rack Height |
1RU |
|
Weight |

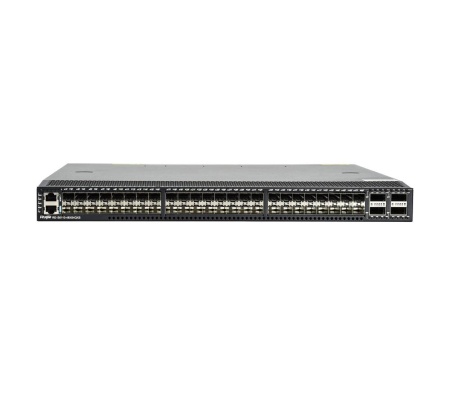

RG-S6110-48XS4QXS: 9.85KG (with 3 fans and without power supply) RG-M6110-AC460E-F: 1.68KG M6220-FAN II-F: 0.25KG |
|
MTBF |
>200K hours |
|
Safety Standards |
EN 60950-1 |
|
Emission Standards |
EN 300 386, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 |
|
Power Supply |
AC input: Frequency: 50Hz to 60Hz |
|
Power Consumption |
<180W |
|
Temperature |
Operating temperature: 0°C to 50°C |
|
Storage temperature: -40°C to 70°C |
|
|
Humidity |
Operating humidity: 10% to 90%RH |
|
Storage humidity: 5% to 95%RH |
|
|
Operating Altitude |
-500m to 5,000m |
