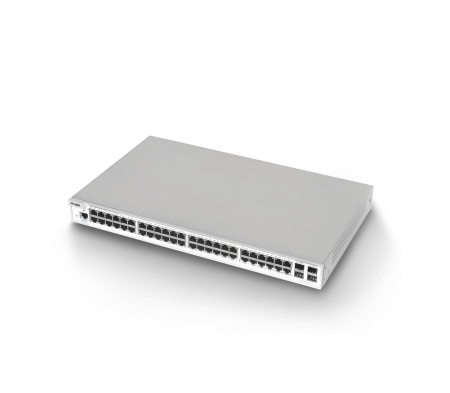

Коммутатор Ruijie RG-S2952G-E V3

Model

RG-S2952G-E V3

Ports

48 10/100/1000BASE-T ports

4 1G SFP ports (non-combo)

Management Ports

1 console port

Switching Capacity

Up to 256Gbps

Packet

Up to 132Mpps

Port Buffer

1.5MB

ARP Table

1,000

MAC Address

Up to 16K

Routing Entries

500

IP Host Entries
(IPv4/IPv6)

500 (IPv4/IPv6)

ACL Entries

Up to 1,500

Multiple Spanning Tree Protocol (MSTP) Instances

64

Maximum Aggregation Port (AP)

Up to 128

Layer 3 Protocols (IPv4)

Static routing, RIP, RIPng, OSPFv2/v3

IPv4 Features

Ping, Traceroute

IPv6 Features

0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address,  IPv6 Ping, IPv6 Tracert, IPv6 extender option head,VRRP v3

Basic IPv6 Protocols

IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 Ping, IPv6 Tracert

IPv6 Routing Protocols

Static routing, RIPng, OSPFv3

VSU (Virtual Switch Unit)

Support (up to 9 stack members，to ensure the effectiveness of the use, 4 members are recommended)

Zero Configuration

CWMP(TR069)

Reliability

RAS
VSU (virtualization technology for virtualizing multiple devices into 1); GR for RIP/OSPF;  ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol)

Manageability

SNMPv1/v2c/v3, CLI (Telnet/Console), RMON (1, 2, 3, 9), SSH, Syslog/Debug, RSPAN/ERSPAN, NTP/SNTP, FTP, TFTP, Web, SFLOW，support cable detection and port sleep mode

Smart Temperature Control

Auto fan speed adjustment; Fan malfunction alerts; Fan status check

Other Protocols

FTP, TFTP, DNS client, DNS static

Dimensions
(W x D x H) (mm)

440 × 260 × 43.6

Rack Height

1RU

Weight

≤4kg

MTBF

372690 hours

Lightning Protection

6KV
