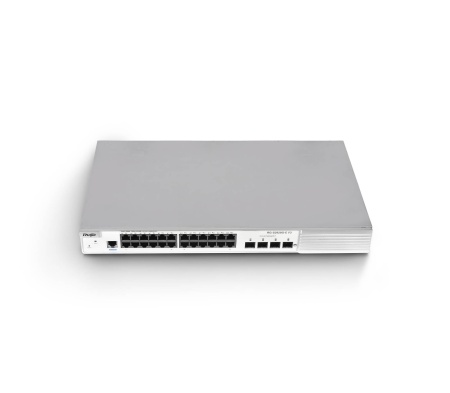

Коммутатор Ruijie RG-S2928G-E V3

Model

RG-S2928G-E V3

Ports

24 10/100/1000BASE-T ports
4 1G SFP ports (non-combo)

Fan Slots

Fanless

Management Ports

1 console port

Switching Capacity

Up to 256Gbps

Packet Forwarding Rate

Up to 96Mpps

Port Buffer

1.5MB

ARP Table

1,000

MAC Address

Up to 16K

Routing Entries

500

IP Host Entries
(IPv4/IPv6)

500 (IPv4/IPv6)

ACL Entries

Up to 1,500

Multiple Spanning Tree Protocol (MSTP) Instances

64

Maximum Aggregation Port (AP)

Up to 128

Other Protocols

FTP, TFTP, DNS client, DNS static

Dimensions
(W x D x H) (mm)

440 × 260 × 43.6

Rack Height

1RU

Weight

≤3.5kg

MTBF

482560 hours

Lightning Protection

6KV

Power Supply

AC input:
Rated voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50 to 60Hz

HVDC input:
Input voltage range: 192V to 290V DC

Power Consumption

≤24W

Temperature

Operating temperature: 0°C to 50°C

Storage temperature: -40°C to 70°C

Humidity

Operating humidity: 10% to 90%RH

Storage humidity: 5% to 95%RH

Operating Altitude

-500m to 5,000m
