Модель является многофункциональной, предоставляет широкий спектр возможностей. Гарантирует защиту инвестиций, снижает стоимость владения. Снабжена интуитивно понятным интерфейсом, легко настраивается.
|
Model |

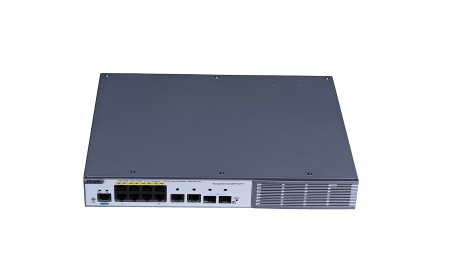

RG-S2910-10GT2SFP-UP-H |
|||
|
Ports |
10 10/100/1000BASE-T ports (8ports PoE/PoE+), 2 Gigabit SFP ports (non-combo) uplink, Port 1-8 for HPoE, AC |
|||
|
Management Port |
1 console port |
|||
|
Switching Capacity |
Up to 256Gbps |
|||
|
Packet Forwarding Rate |
Up to 18Mpps |
|||
|
PoE |
IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt |
|||
|
Port Buffer |
1.5MB |
|||
|
ARP Table |
500 |
|||
|
MAC Address |
16K |
|||
|
Routing Table Size (IPv4/IPv6) |
64 (IPv4/IPv6) |
|||
|
ACL Entries |
In: 750 Out: N/A |
|||
|
VLAN |
Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, IP subnet-based VLAN, GVRP |
|||
|
QinQ |
Basic QinQ, Flexible QinQ |
|||
|
Port Mirroring |
Support aggregation port as source and destination port of mirroring; Flow-based mirroring; VLAN-based mirroring; Many-to-one mirroring; One-to-many mirroring; RSPAN; ERSPAN |
|||
|
Spanning Tree Protocols |
IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard |
|||
|
DHCP |
DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay |
|||
|
Multiple Spanning Tree Protocol (MSTP) Instances |
64 |
|||
|
SDN |
OpenFlow |
|||
|
Zero Configuration |
CWMP(TR069) |
|||
|
L2 Features |
MAC, VLAN, Basic QinQ, Felix QinQ, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, Jumbo frame, RLDP, LLDP, REUP, G.8032 |
|||
|
Layer 2 Protocols |
IEEE802.1d, IEEE802.1w, IEEE802.1s, IGMP Snooping v1/v2/v3 |
|||
|
Layer 3 Features |
ARP, IPv4/v6 |
|||
|
IPv4 Features |
Ping, Traceroute |
|||
|
IPv6 Features |
0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address, IPv6 Ping, IPv6 Tracert, IPv6 extender option head |
|||
|
Basic IPv6 Protocols |
IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 Ping, IPv6 Tracert |
|||
|
IPv4 Routing Protocols |
Static Routing, RIP, OSPFv1/v2 |
|||
|
IPv6 Routing Protocols |
Static Routing, RIPng, OSPFv3 |
|||
|
G.8032 |
Support |
|||
|
ACL |
Standard IP ACL, Extended IP ACL, Extended MAC ACL, Expert ACL, ACL80, IPv6 ACL, ACL Logging, ACL Counter, ACL Remark, Global ACL, ACL Redirect |
|||
|
QoS |
802.1p/DSCP traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WRR, SP+DRR; Input port-based speed limit; Each port supports 8 queue priorities,Dynamic QoS |
|||
|
Reliability |
GR for RIP |
|||
|
EEE Format |
Support IEEE 802.3az standard |
|||
|
Security |
Binding of the IPv6 and MAC address; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Gateway anti-ARP spoofing; Hierarchical management by administrators and password protection; RADIUS and TACACS+; SSH V1.5 and SSH V2.0; IP source guard; CPP, NFPP; Port protection |
|||
|
Manageability |
SNMPv1/v2c/v3, RMON(1, 2, 3, 9), SSH, Syslog / Debug, NTP / SNTP, FTP, TFTP, Web |
|||
|
Smart Temperature Control |
Temperature monitoring and alert |
|||
|
Dimensions (W x D x H) (mm) |
340×260×44 |
|||
|
Rack Height |
1RU |
|||
|
MTBF |
408710 hours |
|||
|
Lightning Protection |
6KV |
|||
|
Power Supply |
AC input: |
|||
|
Power Consumption |
<630W |
|||
|
Temperature |
Operating temperature: 0°C to 50°C |
|||
|
Storage temperature: -40°C to 70°C |
||||
|
Humidity |
Operating humidity: 10% to 90%RH |
|||
|
Storage humidity: 5% to 95%RH |
||||
|
Operating Altitude |
-500m to 5,000m |
|||
