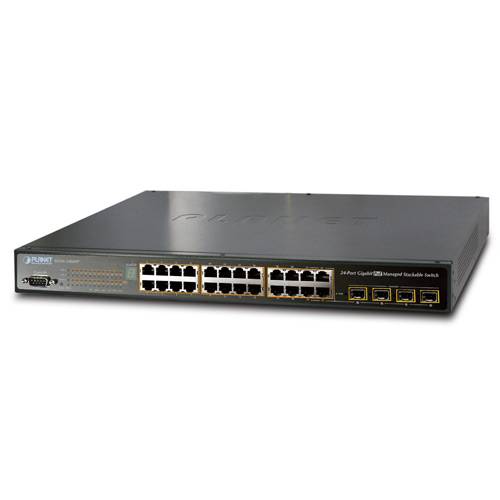

Коммутатор Planet SGSW-24040P

Hardware Specification

Copper Ports

24 10/100/1000Base-T RJ-45 auto-MDI/MDI-X ports with IEEE 802.3af PoE injector

SFP/mini-GBIC Slots

4 1000Base-SX/LX/BX SFP interfaces, shared with Port-21 to Port-24
100Base-FX SFP transceiver compatible

Console

1 x RS-232 DB9 serial port (115200, 8, N, 1)

Switch Processing Scheme

Store-and-Forward

Switch Fabric

68Gbps

Address Table

8K entries

Share data Buffer

1392 kilobytes

Flow Control

IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex

Jumbo Frame

10Kbytes

LED

System:
Power, Master, FAN Alert, PoE Power Alert
Ports:
10/100/1000 Link/Act, PoE In-Use, SFP Link, Stack Port Link

Reset Button

< 5 sec: System reboot
> 5 sec: Factory Default

Dimension (W x D x H)

440 x 300 x 44.5 mm, 1U height

Weight

4.5 KG

Power Consumption

SGSW-24040P: Max. 290 Watts / 989 BTU
SGSW-24040P4: Max. 430 Watts / 1467 BTU

Power Requirement

AC 100~240V, 50/60Hz

ESD Protection

6KV DC

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet / PSE

PoE Power Supply

End-Span

PoE Power Output

Per Port 48V DC, 350mA . Max. 15.4 Watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

SGSW-24040P: 220 Watts
SGSW-24040P4: 380 Watts

PoE Ability

Number of PD@7Watts
SGSW-24040P: 24
SGSW-24040P4: 24

Number of PD@15.4Watts
SGSW-24040P: 14
SGSW-24040P4: 24

Stacking

Stacking Ports

Two 5Gbps HDMI-Like interface

Stacking Numbers

16

Stacking Bandwidth

10Gbps (full-duplex)

Stack ID Display

7-Segment LED Display (1~9, A~F,0)

Stack Topology

Ring / Chain / Back-to-Back stack

Layer 2 Function

Basic Management Interfaces

Console, Telnet, Web Browser, SNMPv1, v2c

Secure Management Interfaces

SSH, SSL, SNMP v3

Port Configuration

Port disable/enable.
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Bandwidth control on each port

VLAN

802.1Q Tagged based VLAN
Port-based VLAN
Q-in-Q
Private VLAN Edge (PVE)
Up to 256 VLAN groups, out of 4094 VLAN IDs

Spanning Tree Protocol

IEEE 802.1D Spanning Tree
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
Up to 8 MST instances

Link Aggregation

IEEE 802.3ad LACP / Static Trunk
Support 12 groups of 16-Port trunk support

QoS

Traffic classification based, strict priority and WRR
4-level priority for switching
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
DSCP / TOS field in IP Packet Policy-based QoS

IGMP Snooping

IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups
IGMP Querier mode support

Access Control List

IP-based ACL / MAC-based ACL
Up to 256 entries

SNMP MIBs

RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2933 IGMP-STD-MIB
RFC3411 SNMP-Frameworks-MIB
IEEE802.1X PAE
LLDP
MAU-MIB
Power over Ethernet

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Safety

UL, cUL

Standards Compliance

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1d Spanning tree protocol
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1s Multiple spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
IEEE 802.3af Power over Ethernet
