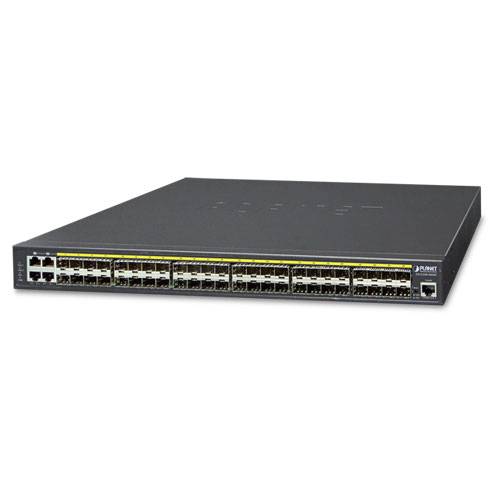

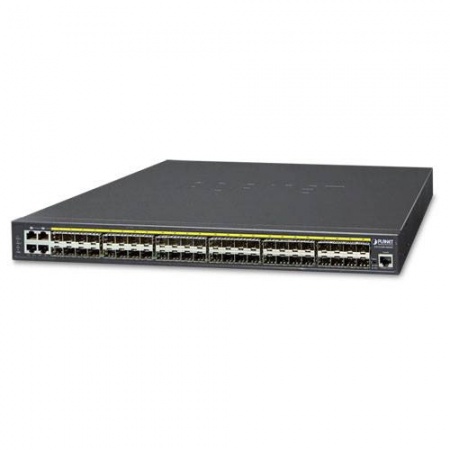

Коммутатор Planet GS-5220-44S4C

Hardware Specifications

Copper Ports

4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-4

SFP/mini-GBIC Slots

48 100/1000BASE-X SFP interfaces
Compatible with 100BASE-FX SFP transceiver

Console

1 x RS232-to-RJ45 serial port (115200, 8, N, 1)

Switch Architecture

Store-and-Forward

Switch Fabric

96Gbps

Throughput

71. 2Mpps@64Bytes

Address Table

16K entries, automatic source address learning and ageing

Shared Data Buffer

16M bits

Flow Control

IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex

Jumbo Frame

10K bytes

Reset Button

< 5 sec: System reboot
> 5 sec: Factory default

Dimensions (W x D x H)

440 x 300 x 44.5 mm, 1U height

Weight

3765g

LED

System:
PWR (Green), SYS (Green), Fan 1 (Red), Fan 2 (Red)
10/100/1000T RJ45 Combo Interfaces (Port 1 to Port 4):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Orange)
10Mbps LNK/ACT (OFF)
100/1000Mbps SFP Interfaces (Port 1 to Port 48):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Orange)

Power Requirements

100~240V AC, 50/60Hz

Power Consumption

45 watts / 153 BTU/hr (max.)

ESD Protection

2KV DC

Layer 2 Management Functions

Port Configuration

Port disable / enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable / enable

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status

Port Mirroring

TX / RX / Both
Many-to-1 monitor

VLAN

802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP / static trunk
24 groups of 8-Port trunk supported

Spanning Tree Protocol

STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol

QoS

Traffic classification based, Strict priority and WRR
8-level priority for switching:
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/ToS field in IP packet

IGMP Snooping

IGMP (v1 / v2 / v3) Snooping, up to 255 multicast groups
IGMP Querier mode support

MLD Snooping

MLD (v1 / v2) Snooping, up to 255 multicast groups
MLD Querier mode support

Access Control List

IP-based ACL / MAC-based ACL
Up to 256 entries

Bandwidth Control

Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps

Layer 3 Functions

IP Interfaces

Max. 128 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 hardware static routing
IPv6 hardware static routing

Management

Basic Management Interfaces

Console / Telnet / Web browser / SNMP v1, v2c

Secure Management Interfaces

SSH, SSL, SNMP v3

SNMP MIBs

RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
