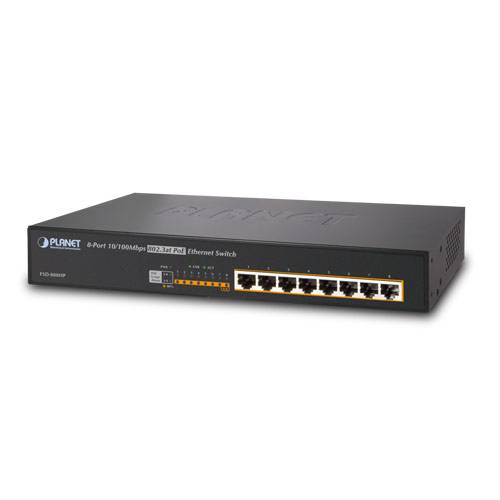

Коммутатор Planet FSD-808HP

Hardware Specification

Network Connector

8-Port RJ-45 for 10/100Base-TX

PoE Inject Port

8-Port with 802.3af / 802.3at PoE injector function

LED Display

System: Power (Green)
PoE Usage Alarm:
• 1-4 (Orange)
• 5-8 (Orange)
Per port:
• PoE in-use (Green)
• LNK/ACT (Green)

Switch Architecture

Store and Forward switch architecture

MAC Address

2K MAC address table with auto learning function

Switch Fabric

1.6Gbps

Switch Throughput

1.19Mpps@64Bytes

Power Requirements

AC 100~240V, 50/60Hz, 2A max.

Power Consumption

Max.150 watts / 511 BTU

Dimensions (W x D x H)

280 x 180 x 44 mm

Weight

1.65kg

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at Enhancement Power over Ethernet / PSE

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 52V DC max. 30.8 watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

140 watts

Environment

Operating Temperature

0 ~ 50 degrees C

Storage Temperature

-40 ~ 70 degrees C

Operating Humidity

5 ~ 95%, relative humidity, non-condensing

Storage Humidity

5 ~ 95%, relative humidity, non-condensing

Standard Conformance

Standard Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Enhancement Power over Ethernet
IEEE 802.3az Energy-Efficient Ethernet

EMI Safety

FCC Class B, CE
