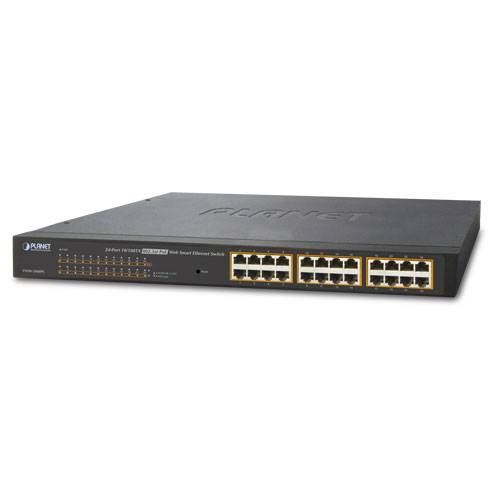

Коммутатор Planet FNSW-2400PS

Hardware Specifications

Copper Ports

24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports

Switch Architecture

Store-and-Forward

Switch Fabric

4.8Gbps/non-blocking

Throughput

3.57Mpps@64bytes

Address Table

8K entries, automatic source address learning and aging

Shared Data Buffer

1.75M bits

Flow Control

IEEE 802.3x pause frame for full duplex
Back pressure for half duplex

Dimensions (W x D x H)

445 x 207 x 45 mm, 1U height

Weight

2.6g

LED

System:

PWR (Green)

PoE Ethernet Interfaces (Port-1 to Port-24):

PoE (Orange)

Ethernet Interfaces (Port-1 to Port-24):

10/100 LNK/ACT (Green)

Power Consumption

Max. 135 watts/460 BTU

Power Requirements – AC

AC 100~240V, 50/60Hz, 2A

Power over Ethernet

PoE Standard

IEEE 802.3af/802.3at PoE PSE

PoE Power Supply Type

Mid-span

PoE Power Output

Per port 52V DC, 30 watts (max.)

Power Pin Assignment

4/5(-), 7/8(+)

PoE Power Budget

125 watts (max.)

Smart Functions

System Configuration

Web interface, SNMP v1, v2

Port Configuration

Port speed duplex mode selection
Port Disable / Enable

Bandwidth Control

Yes

Broadcast Storm Control

Yes

Port Statistics

Display each port’s details about Ethernet traffic counter information

VLAN

24 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN

Spanning Tree Protocol

STP, IEEE 802.1D (Spanning Tree Protocol)
RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)

Port Trunking

2 groups of 4-port 10/ 100Base-TX trunk support, up to 800Mbps bandwidth per trunk group

Port Mirroring

Port mirroring allows monitoring of the traffic across any port in real time

QoS

Allows to assign low / high priority on each port
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy

MAC Address / TCP & UDP Filter

Yes

IGMP Snooping v1 / v2

Allows to Disable or Enable

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
