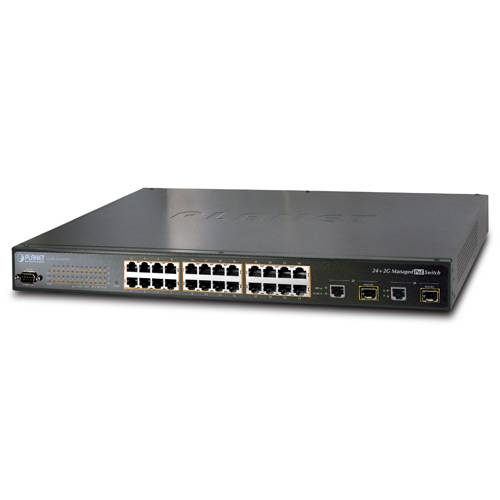

Коммутатор Planet FGSW-2620PVM

Hardware Specifications

10/100Mbps Copper Ports

24 10/ 100Base-TX RJ-45 auto-MDI/MDI-X ports

1000Mbps Copper Ports

2 10/100/1000Mbps RJ-45 auto-MDI/MDI-X ports

SFP/mini-GBIC Slots

2 1000Base-SX/LX, shared with Port-25~Port-26

Switch Architecture

Store-and-Forward

Switch Fabric

8.8Gbps / non-blocking

Switch Throughput

6.547Mpps @64Bytes

Address Table

8K entries

Share Data Buffer

512Kbytes

Maximum Frame Size

9K Bytes

Flow Control

Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex

LED

Power, Fan Alarm
Link/Activity (Green)
PoE In-Use (Amber)
1000 LNK / ACT(Green)
10/100 LNK / ACT(Green)

Reset Button

< 5 sec: System reboot
> 5 sec: Factory Default

Dimensions (W x D x H)

440 x 265 x 44 mm, 1U height

Weight

3.6kg

Power Requirements

100~240V AC, 50-60 Hz

Power Consumption / Dissipation

210 watts maximum / 717 BTU/hr maximum

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet / PSE

PoE Power Supply Type

End-span

PoE Power Output

Per Port 48V DC, 350mA . Max. 15.4 watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

190 watts

Max. number of Class 2 PD

24

Max. number of Class 3 PD

12

Layer 2 Functions

Management Interface

Console, Telnet, Web Browser, SSL, SNMPv1, v2c

Port Configuration

Port disable/enable
Auto-negotiation
10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable

Bandwidth Control

Ingress / Egress Rate Control
Allow to configure per 128Kbps

VLAN

IEEE 802.1Q Tag-based VLAN
Port-based VLAN
Q-in-Q tunneling
Up to 255 VLANs groups, out of 4041 VLAN IDs

Link Aggregation

Static Port Trunk
IEEE 802.3ad LACP (Link Aggregation Control Protocol)
Supports 13 groups of 8-Port trunk support

Quality of Service

Traffic classification based on :
-Port priority
-802.1p priority
-DSCP/TOS field in IP Packet

IGMP Snooping

IGMP (v1/v2) Snooping, up to 256 multicast Groups
IGMP Querier support

Port Mirror

RX / TX / Both
1-to-1 mirroring

Security

IEEE 802.1x Port-based Network access control
Port Security
Static MAC
MAC Filtering
MAC / IP Binding

Access Control List

IP-based Layer 3 / Layer 4 ACL
Up to 220 ACL rule entries

SNMP MIBs

RFC-1213 MIB-II
RFC-2863 Interface MIB
RFC-2665 EtherLike MIB
RFC-1493 Bridge MIB
RFC-2819 RMON MIB (Group 1, 2, 3,9)
POWER-ETHERNET-MIB

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-TX
IEEE 802.3z: 1000Base- SX/LX
IEEE 802.3ab: 1000Base-T
IEEE 802.3x: Flow Control
IEEE 802.3ad: Port trunk with LACP
IEEE 802.1D: Spanning tree protocol
IEEE 802.1w: Rapid spanning tree protocol
IEEE 802.1p: Class of service
IEEE 802.1Q: VLAN Tagging
IEEE 802.1x: Port Authentication Network Control
IEEE 802.3af: Power over Ethernet
