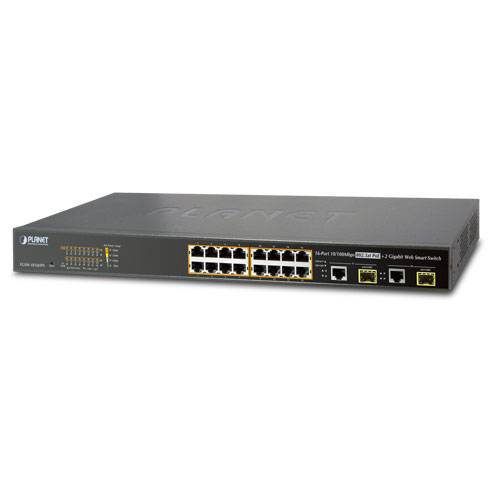

Коммутатор Planet FGSW-1816HPS

Hardware Specifications

10/100Mbps Copper Ports

16 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports

Gigabit Copper Ports

2 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports

SFP/mini-GBIC Slots

2 1000Base-X SFP interfaces, shared with Port-17 to Port-18

Switch Architecture

Store-and-Forward

Switch Fabric

7.2Gbps / non-blocking

Throughput

5.35Mpps@64Bytes

Address Table

4K entries, automatic source address learning and ageing

Share Data Buffer

2.75Mb embedded memory for packet buffers

Flow Control

IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex

Jumbo Frame

1536 Bytes

Reset Button

< 5 sec: System reboot
> 5 sec: Factory Default

Dimensions (W x D x H)

440 x 200 x 44.5 mm, 1U height

Weight

2.55kg

LED

System:
Power (Green)
10/100Base-TX RJ45 Interfaces (Port1 to Port16):
10/100Mbps LNK/ACT (Green)
PoE In-Use (Orange)
10/100/1000Base-T RJ45 / SFP Interfaces (Port17 to Port18):
LNK/ACT (Green)
100/1000 (Green)
PoE Usage
50W, 100W, 150W, 190W (Orange)

Cable Twisted-Pair

10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters

Cable Fiber-Optic Cable

1000Base-SX :
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
(varying on SFP module)
1000Base-LX :
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120
kilometers (varying on SFP module)

Power Requirements

100~240V AC, 50/60Hz, 4A

Power Consumption

Max. 240 watts / 816 BTU

ESD Protection

2KV DC

Power over Ethernet

PoE Standard

IEEE 802.3af / 802.3at PoE / PSE

PoE Power Supply Type

End-span

PoE Power Output

Per Port 56V DC, Max. 30.8 watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

220 watts (max.)

PoE Ability PD @ 7 watts

16 units

PoE Ability PD @ 15.4 watts

14 units

PoE Ability PD @ 30.8 watts

7 units

Layer 2 Functions

Port Configuration

Port disable / enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto negotiation status and trunk status

Port Mirroring

TX / RX / Both
Many-to-1 monitor

VLAN

802.1Q tagged-based VLAN, up to 30 VLAN groups, out of 4094 VLAN IDs
Port-based VLAN, up to 18 VLAN groups
MTU VLAN

Link Aggregation

2 groups of 4-Port 10/100Base-TX trunk supported
1 group of 2-Port 10/100/1000Base-T trunk supported

QoS

Allow to assign low / high priority on each port
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy

IGMP Snooping

IGMP (v1/v2) Snooping, up to 32 multicast groups

Security Control

MAC address binding
TCP & UDP filter

Management Functions

Basic Management Interfaces

Web Browser, SNMP v1

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.1Q VLAN
IEEE 802.1p QoS
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
