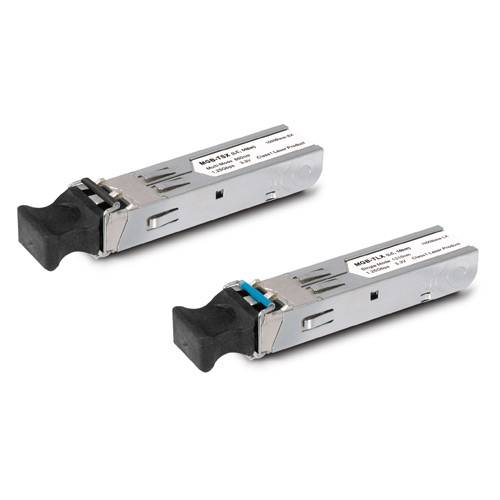

Все модули, имеют стандартный размер в соответствии с промышленным стандартом SFP (Small Form Pluggable). Модули вставляются в слот SFP коммутаторов Gigabit Ethernet. Они обеспечивают преобразование сигнала для передачи и приема данных при подключении порта к оптическому или медному кабелю.
|
MGB-SX |
|
|
PHY Type |
IEEE 802.3z 1000BASE-SX |
|
Fiber Type |
Multi-Mode |
|
Connector |
LC |
|
Wavelength |
850nm |
|
Maximum Distance |
220m~550m |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-SX2 |
|
|
PHY Type |
IEEE 802.3z 1000BASE-SX |
|
Fiber Type |
Multi-Mode |
|
Connector |
LC |
|
Wavelength |
1310nm |
|
Maximum Distance |
2km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-LX |
|
|
PHY Type |
IEEE 802.3z 1000BASE-LX |
|
Fiber Type |
Single Mode |
|
Connector |
LC |
|
Wavelength |
1310nm |
|
Maximum Distance |
10km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-L30 |
|
|
PHY Type |
IEEE 802.3z 1000BASE-LX |
|
Fiber Type |
Single Mode |
|
Connector |
LC |
|
Wavelength |
1310nm |
|
Maximum Distance |
30km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-L50 |
|
|
PHY Type |
IEEE 802.3z 1000BASE-ZX |
|
Fiber Type |
Single Mode |
|
Connector |
LC |
|
Wavelength |
1550nm |
|
Maximum Distance |
50km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-L70 |
|
|
PHY Type |
IEEE 802.3z 1000BASE-ZX |
|
Fiber Type |
Single Mode |
|
Connector |
LC |
|
Wavelength |
1550nm |
|
Maximum Distance |
70km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-L120 |
|
|
PHY Type |
IEEE 802.3z 1000BASE-ZX |
|
Fiber Type |
Single Mode |
|
Connector |
LC |
|
Wavelength |
1550nm |
|
Maximum Distance |
120km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-LA10 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1310nm, RX: 1550nm |
|
Maximum Distance |
10km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-LB10 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1550nm, RX: 1310nm |
|
Maximum Distance |
10km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-LA20 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1310nm, RX: 1550nm |
|
Maximum Distance |
20km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-LB20 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1550nm, RX: 1310nm |
|
Maximum Distance |
20km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-LA40 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1310nm, RX: 1550nm |
|
Maximum Distance |
40km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-LB40 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1550nm, RX: 1310nm |
|
Maximum Distance |
40km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-LA60 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1310nm, RX: 1550nm |
|
Maximum Distance |
60km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-LB60 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1550nm, RX: 1310nm |
|
Maximum Distance |
60km |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-GT |
|
|
PHY Type |
IEEE 802.3ab 1000BASE-T |
|
Connector |
RJ45, Auto-negotiation, Auto-MDI/MDI-X |
|
Maximum Distance |
100m |
|
Operating Temperature |
0 ~ 60 degrees C |
|
MGB-TSX |
|
|
PHY Type |
IEEE 802.3z 1000BASE-SX |
|
Fiber Type |
Multi-Mode |
|
Connector |
LC |
|
Wavelength |
850nm |
|
Maximum Distance |
220m & 550m |
|
Operating Temperature |
-40 ~ 75 degrees C |
|
MGB-TLX |
|
|
PHY Type |
IEEE 802.3z 1000BASE-LX |
|
Fiber Type |
Single Mode |
|
Connector |
LC |
|
Wavelength |
1310nm |
|
Maximum Distance |
10km |
|
Operating Temperature |
-40 ~ 75 degrees C |
|
MGB-TL30 |
|
|
PHY Type |
IEEE 802.3z 1000BASE-LX |
|
Fiber Type |
Single Mode |
|
Connector |
LC |
|
Wavelength |
1310nm |
|
Maximum Distance |
30km |
|
Operating Temperature |
-40 ~ 75 Degree C |
|
MGB-TL70 |
|
|
PHY Type |
IEEE 802.3z 1000BASE-ZX |
|
Fiber Type |
Single Mode |
|
Connector |
LC |
|
Wavelength |
1550nm |
|
Maximum Distance |
70km |
|
Operating Temperature |
-40 ~ 75 degrees C |
|
MGB-TLA10 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1310nm, RX: 1550nm |
|
Maximum Distance |
10km |
|
Operating Temperature |
-40 ~ 75 degrees C |
|
MGB-TLB10 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1550nm, RX: 1310nm |
|
Maximum Distance |
10km |
|
Operating Temperature |
-40 ~ 75 degrees C |
|
MGB-TLA20 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1310nm, RX: 1550nm |
|
Maximum Distance |
20km |
|
Operating Temperature |
-40 ~ 75 degrees C |
|
MGB-TLB20 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1550nm, RX: 1310nm |
|
Maximum Distance |
20km |
|
Operating Temperature |
-40 ~ 75 degrees C |
|
MGB-TLA40 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1310nm, RX: 1550nm |
|
Maximum Distance |
40km |
|
Operating Temperature |
-40 ~ 75 degrees C |
|
MGB-TLB40 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1550nm, RX: 1310nm |
|
Maximum Distance |
40km |
|
Operating Temperature |
-40 ~ 75 degrees C |
|
MGB-TLA60 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1310nm, RX: 1550nm |
|
Maximum Distance |
60km |
|
Operating Temperature |
-40 ~ 75 degrees C |
|
MGB-TLB60 |
|
|
PHY Type |
IEEE 802.3ah 1000BASE-BX |
|
Fiber Type |
Single Mode |
|
Connector |
WDM/Bidi LC |
|
Wavelength |
TX: 1550nm, RX: 1310nm |
|
Maximum Distance |
60km |
|
Operating Temperature |
-40 ~ 75 degrees C |
