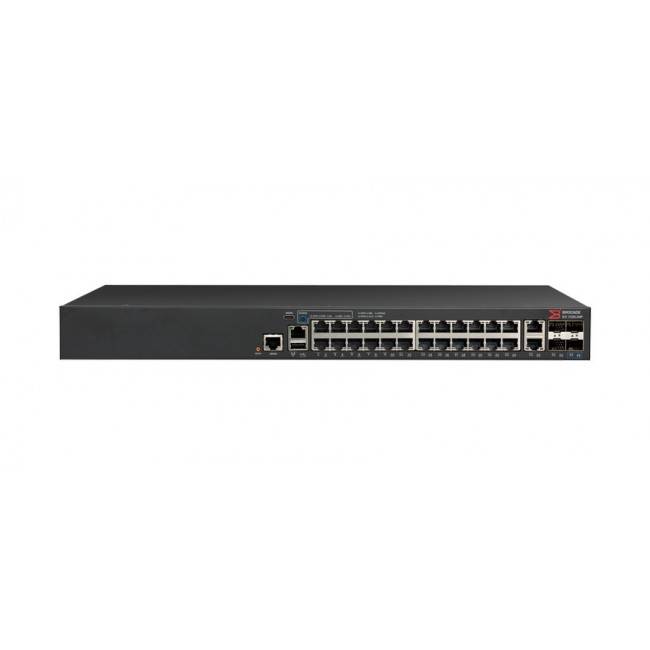

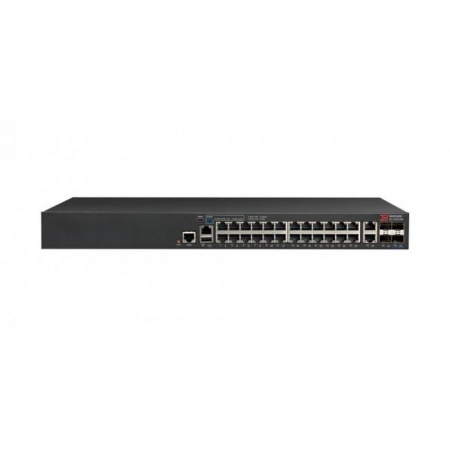

Коммутатор Brocade Ruckus ICX7150 (ICX7150-24P-4X1G)

Switching capacity

(data rate, full duplex)

132 Gbps

Forwarding capacity

(data rate, full duplex)

98 Mpps

10/100/1000 Mbps RJ45 downlinks

24

100/1000 Mbps/2.5 Gbps RJ45 downlinks

(full duplex only)

10/100/1000 Mbps RJ45 uplinks

(full duplex only, no PoE)

2

1/10 Gbps SFP/SFP+ uplinks

4

PoE/PoE+ ports

24

PoH / PoE / PoE+ ports

Dual hot-swap power supplies

Maximum PoE Class 3 ports

(15.4 W per port)

24

Maximum PoE+ Class 4 ports

(30 W per port)

12

Base IPv4/v6 Layer 3 routing1

(static routing, RIP)

Yes

Advanced IPv4/v6 Layer 3 routing1

(OSPF, VRRP, PIM, PBR features)

With license

Aggregated stacking bandwidth1

(data rate, full duplex)

480 Gbps

Stacking density1

(maximum switches in a stack)

12

Stacking ports1

(maximum ports2 usable for stacking)

Up to 4×10 GbE SFP+

Maximum stacking distance1

(distance between stacked switches)

10 km

Power inlet (AC)

C14

Input voltage/frequency

AC: 100 to 240 VAC @ 50 to 60 Hz

Power supply rated maximum (AC)

525 W

PoE power budget (AC)

370 W

Airflow

Side-to-back
