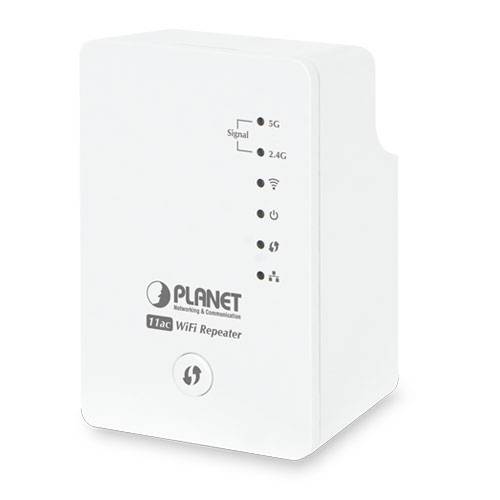

Wi Fi точка доступа Planet WRE-1200

Hardware Specifications

Interface

LAN/WAN:
1 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port

Antenna

Gain: 2.4GHz: 2 x 2dBi internal antenna
5GHz: 2 x 4dBi internal antenna

Button/Switch

Mode Selection Switch (AP/Repeater/Client)
WPS/Reset Button
*Press for about 3~10 seconds for WPS settings and over 30 seconds to reset to factory default settings

LED Indicators

PWR, LAN, WPS, Wi-Fi signal, WLAN

Material

Plastic

Dimensions (W x D x H)

59 x 40 x 91 mm (power plug is excluded)

Weight

116g

Power Requirements

Input power: 100-240V AC, 50/60Hz

Wireless Interface Specifications

Standard

IEEE 802.11ac (Draft 2.0) 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz

Frequency Band

Simultaneous 2.4 GHz and 5 GHz

Data Modulation

802.11b: DSSS (DBPSK/DQPSK/CCK)
802.11a/g/n: OFDM (BPSK/QPSK/16QAM/64QAM)
802.11ac: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)

Data Rates

802.11a: 6/9/12/24/36/48/54Mbps
802.11b: 1/2/5.5/11Mbps
802.11g: 6/9/12/24/36/48/54Mbps
802.11n (20MHz): MCS0-15, up to 144Mbps
802.11n (40MHz): MCS0-15, up to 300Mbps
802.11ac (80MHz): Nss2-MCS9, up to 867Mbps

Frequency Range

■ 2.4GHz:

America -- FCC: 2.412~2.462GHz

Europe -- ETSI: 2.412~2.484GHz

■ 5GHz:

America -- FCC: 5.180~5.240GHz, 5.725~5.850GHz

Europe -- ETSI: 5.180~5.240GHz

Operating Channels

■ 2.4GHz:

America -- FCC: 1~11

Europe -- ETSI: 1~13

■ 5GHz:

America -- FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165

Europe -- ETSI: 36, 40, 44, 48



5GHz channel list will vary in different countries according to their regulations.

Channel Width

802.11n: 20/40MHz
802.11ac: 20/40/80MHz

RF Power/EIRP

■ 2.4GHz:

11b: 17±1.5dBm

11g: 15±1.5dBm

11n: 14±1.5dBm

■ 5GHz:

11a: 14±1.5dBm

11n: 14±1.5dBm

11ac: 12±1.5dBm

Receive Sensitivity

■ 2.4GHz:

11b (11Mbps): -86±2dBm

11g (54Mbps): -72±2dBm

11n (20M)mode: -71±2dBm

11n (40M)mode: -69±2dBm

■ 5GHz:

11a: -73±2dBm

11n (20M)mode: -71±2dBm

11n (40M)mode: -68±2dBm

11ac(80M)mode: -58±2dBm

Software Features

Wireless Modes

■ AP

■ Client

■ Universal Repeater

Encryption Security

WEP (64-/128-bit)
WPA/WPA2
WPA-PSK/WPA2-PSK encryption

Wireless Security

Wireless MAC address filtering
Support WPS (WI-FI Protected Setup)

Max. Supported Clients

2.4GHz Wireless: 32
5GHz Wireless: 32

LAN

Built-in DHCP server supporting static IP address distributing

System Management

Web-based (HTTP) management interface
System Log

IEEE Standards

IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T

Other Protocols and Standards

CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP

OS Compatibility

Windows 10
Windows 8
Windows 7
Windows Vista
Windows XP
Mac OS X 10.4 and higher

Standards Conformance

Temperature

Operating: 0 ~ 40 degrees C
Storage: -20 ~ 60 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 95% (non-condensing)

Regulatory

FCC, CE, RoHS, WEEE
