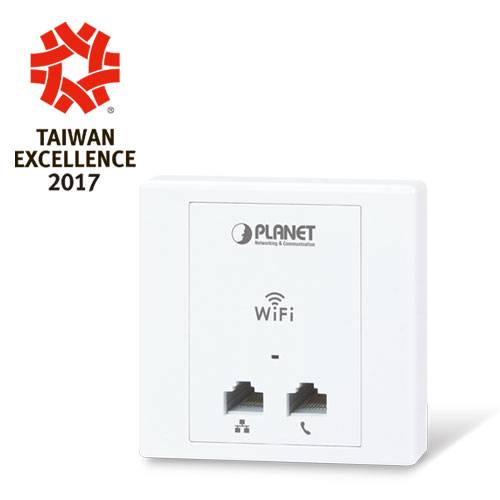

Wi Fi точка доступа Planet WNAP-W2201A

Hardware Specifications

Interface

PoE Port: 1 x 10/100Mbps auto MDI/MDI-X RJ45 port (rear panel)
※ IEEE 802.3af PoE PD Port
LAN Port: 1 x 10/100Mbps auto MDI/MDI-X RJ45 port
RJ11 Port: Connect to the telephone through the 4-conductor phone line

PoE

802.3af PoE PD, Class 3

Antenna

Built-in 3dBi antenna x 2

Reset Button

Reset button at side panel
(Press over 5 seconds to reset the device to factory default)

LED Indicators

PWR/SYS LED

Material

Plastic

Dimensions (W x D x H)

86 x 35 x 86 mm

Weight

76g

Power Requirements

802.3af/at PoE, 48-56V DC input, 0.35A (max.)

Power Consumption

< 10W

Wireless interface Specifications

Standard

Compliance with IEEE 802.11b/g/n

Frequency Band

Europe -- ETSI: 2.412~2.472GHz

Operating Channel

Europe -- ETSI: 1~13

Channel Width

20 or 20/40MHz

Data Transmission Rates

■ 802.11n (HT40):

270/243/216/162/108/81/54/27Mbps

135/121.5/108/81/54/40.5/27/13.5Mbps (dynamic)

■ 802.11n (HT20):

130/117/104/78/52/39/26/13Mbps

65/58.5/52/39/26/19.5/13/6.5Mbps (dynamic)

■ 802.11g: 54/48/36/24/18/12/9/6Mbps (dynamic)

■ 802.11b: 11/5.5/2/1Mbps (dynamic)

Transmission Distance

802.11n: up to 70m
802.11g: up to 30m
The estimated transmission distance is based on the theory.
The actual distance will vary in different environments.

Max. RF Power

802.11n: 17 ± 2dBm
802.11g: 17 ± 2dBm
802.11b: 18 ± 2dBm

Receiver Sensitivity

IEEE 802.11b: -92dBm @ 1Mbps; -85dBm @ 11Mbps, PER < 8%
IEEE 802.11g: -88dBm @ 6Mbps; -73dBm @ 54Mbps, PER <10%
IEEE 802.11n: -90dBm @ MCS8; -70dBm @ MCS15, PER <10%

Data Rate

IEEE 802.11b: 1/2/5.5/11Mbps
IEEE 802.11g: 6/9/12/18/24/36/48/54Mbps
IEEE 802.11n: 300 Mbps in 40MHz mode/150Mbps in 20MHz mode

TX Power

Provides 5-level Tx Power Control (100%, 70%, 50%, 35%, 15%)

Wireless Management Features

Operation Mode

■ Standalone AP

■ Managed AP

Wireless Mode

■ AP (Multiple-SSIDs)

■ Client

■ Repeater (WDS+AP)

■ Universal Repeater (AP+Client)

■ WDS PtP Bridge

■ WDS PtMP Bridge

Encryption Security

■ WEP (64-/128-bit) encryption security

■ WPA/WPA2 (TKIP/AES)

■ WPA-PSK/WPA2-PSK (TKIP/AES)

■ 802.1x RADIUS Authentication

Wireless Security

Wireless MAC address filtering (up to 20 entries)
Supports WPS (Wi-Fi Protected Setup)
SSID broadcast and hide

Wireless Advanced

■ Supports WMM (Wi-Fi Multimedia) for better data transmission of video or

on-line demand

■ Supports wireless schedule

■ Multiple SSIDs: up to 5

■ Wireless Isolation: Enables it to isolate each connected wireless client of

a BSSID from communicating with each other

■ IAPP (Inter Access Point Protocol): 802.11f wireless roaming

■ Provides wireless statistics, max. associated station number

Max. Supported Clients

Wired: 253
2.4GHz Wireless: 32

LAN

Built-in DHCP server supporting static IP address distribution
Supports static IP and dynamic IP
Supports UPnP
Supports 802.1d Spanning Tree

System Management

Web-based (HTTP) management interface
Supports SNTP synchronization
Easy firmware upgrade via HTTP/TFTP (through AP controller)
Easily locate deployed APs through the LED control
Supports SNMP management, LED On/Off control, Schedule Reboot
Supports Smart Discovery Utility, System Log
Supports WAPC series of AP controllers for central management

Max. WDS Peers

8

IEEE Standards

IEEE 802.11n (2T2R, up to 300Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control

Other Protocols and Standards

CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP

Environment & Certification

Temperature

Operating: -10 ~ 50 degrees C
Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing)

Regulatory

CE, RoHS
