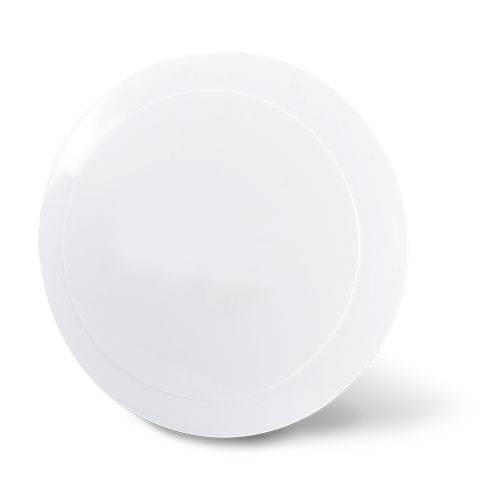

Wi Fi точка доступа Planet WDAP-C7400

Hardware Specifications

Interface

PoE Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port
※IEEE 802.3at compliant PD Port
LAN Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port

PoE

IEEE 802.3at

Antenna

Built-in 4.5dBi dual-band antenna x 3

Reset Button

Reset button at rear panel
Press over 7 seconds to reset the device to factory default

LED Indicators

PWR, 2.4GHz, 5GHz LED

Material

Plastic

Dimensions (Φ x H)

200 x 40 mm

Weight

450g

Power Requirements

52~56V DC, 0.7A (max.), IEEE 802.3at 30W power source is required.

Power Consumption

25W (max.)

Wireless interface Specifications

Standard

IEEE 802.11a/b/g/n
IEEE 802.3u
IEEE802.3ab
IEEE 802.3at

Modulation Type

DSSS (DBPSK / DQPSK / CCK)
OFDM (BPSK / QPSK / 16-QAM / 64-QAM)
MIMO

Frequency Band

Simultaneous 2.4 GHz and 5 GHz
2.4GHz: 2.412~2.484GHz
5GHz: 5.180~5.240GHz; 5.745~5.825GHz

Operating Channel

2.4GHz:
America/ FCC: 2.412~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)

5GHz:
America/ FCC:
11a : 5.180~5.240GHz; 5.745~5.825GHz (36, 40, 44, 48, 149, 153, 157, 161, 165)
11a/n: 5.180~5.220GHz; 5.745~5.785GHz (36, 44, 149, 157)

Europe / ETSI:
11a: 5.180~5.240GHz (36, 40, 44, 48)
11a/n: 5.180~5.220GHz (36,44)

5GHz channel list may vary in different countries according to their regulations.

Channel Width

20 or 20/40MHz

Data Rate

2.4GHz: up to 450Mbps
5GHz: up to 450Mbps

Transmission Distance

Indoor up to 100m

RF Power
(Intentional Radiator)

Wireless Management Features

Wireless Modes

Access Point, WDS PtP, WDS PtMP, Repeater, Universal Repeater

Multiple-SSID

2.4GHz: up to 8
5GHz: up to 2

WDS Peer

Up to 4

Encryption Security

WEP (64/128-bit)
WPA-PSK (TKIP) / WPA2-PSK (AES)
WPA (TKIP) / WPA2 (AES)
802.1x Authentication

Wireless Security

Enable / Disable SSID Broadcast
Wireless LAN ACL (Access Control List) MAC filtering

Wireless Advanced

AP Isolation: enable to isolate each connected wireless client from accessing to each other mutually
Supports 802.11e WMM (Wi-Fi Multimedia)

Max. Supported Clients

Diagnostic Tool

Ping, Traceroute

System Management

Web-based (HTTP) management interface
SNMP management
Supports Planet Smart Discovery & Centralized Management Utility
System Log, Log Server

Standards Conformance

IEEE Standards

IEEE 802.11n
IEEE 802.11a
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3at

Other Protocols and Standards

CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP

Environment & Certification

Temperature

Operating: -10 ~ 45 degrees C
Storage: -30 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)
Storage: 10 ~ 90% (non-condensing)

Regulatory

FCC, CE, RoHS, WEEE
