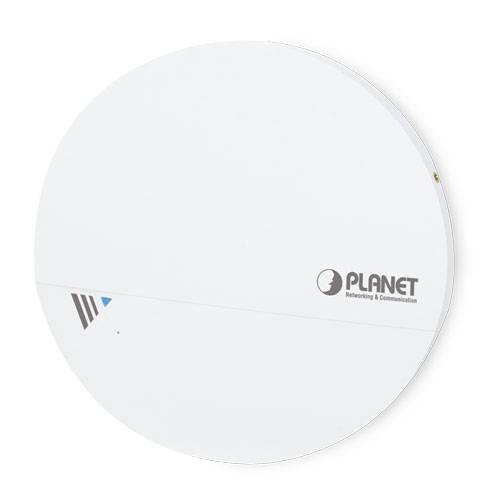

Wi Fi точка доступа Planet WDAP-C1750

Hardware Specifications

Interfaces

LAN:
1 x 10/100/1000BASE-T RJ45 port
Auto-negotiation and auto MDI/MDI-X
USB:
1 x micro USB 2.0 port

Antennas

Gain: Internal PIFA antenna (3 x 2.4GHz 4dBi, 3 x 5GHz 5dBi)

Button

Reset button

LED Indicators

PWR/Diag LED
Allow LED to turn off via software control

Other

Internal buzzer

Material

Plastic front panel, metal rear panel

Dimensions (Φ x H)

208 x 31.5 mm

Weight

590g

Power Requirements

PoE: 802.3at PoE-PD Class 4
12V DC, 2A (not included in the standard package)

Power Consumption (Max.)

15W, 19.2W (with USB)

Mounting

Ceiling mount

Wireless Interface Specifications

Standard

IEEE 802.11ac 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz

Antenna Structure

802.11ac: 3T3R MU-MIMO
802.11n: 3T3R MIMO

Modulation

DSSS

Data Modulation

802.11ac: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
802.11a/g/n: OFDM (BPSK/QPSK/16QAM/64QAM)
802.11b: DSSS (DBPSK/DQPSK/CCK)

Band Mode

2.4G/5G concurrent mode

Frequency Range

■ 2.4GHz:

America -- FCC: 2.412~2.462GHz

Europe -- ETSI: 2.412~2.484GHz

■ 5GHz:

America -- FCC: 5.180~5.240GHz, 5.725~5.850GHz

Europe -- ETSI: 5.180~5.240GHz

Operating Channels

■ 2.4GHz

America -- FCC: 1~11

Europe -- ETSI: 1~13

■ 5GHz

America -- FCC:

36, 40, 44, 48, 149, 153, 157, 161, 165

Europe -- ETSI:

36, 40, 44, 48

5GHz channel list will vary in different countries according to their regulations.

Channel Width

802.11ac: 20/40/80MHz
802.11n: 20/40MHz

Transmission Speed

450 + 1300Mbps (2.4GHz + 5GHz)

Transmission Distance

802.11ac: up to 35m
802.11n: up to 70m
802.11a/b/g: up to 30m

The estimated transmission distance is based on the theory. The actual distance will vary in different environments.

Max. RF Power (limited by local regulation)

■ 5GHz:

802.11ac (VHT20/40/80): 27.5dBm @MCS0

802.11ac (VHT20/40/80): 22.5dBm @MCS7

802.11ac (VHT20/40/80): 19.5dBm @MCS9

802.11n (HT20/40): 27.5dBm @MCS0/MCS8

802.11n (HT20/40): 22.5dBm @MCS7/MCS15

802.11a:

26.5dBm @6Mbps

22.5dBm @54Mbps



■ 2.4GHz:

802.11n (HT20/40): 27.5dBm @MCS0

802.11n (HT20/40): 22.5dBm @MCS7

802.11g: 27.5dBm @6Mbps

802.11g: 23.5dBm @54Mbps

802.11b: 27.5dBm @1Mbps

Receive Sensitivity

■ 5GHz:

802.11ac (VHT20/40/80): -84dBm @MCS0

802.11ac (VHT20/40/80): -58dBm @MCS9

802.11n (HT20): -90dBm @MCS0, -70dBm @MCS7

802.11n (HT40): -87dBm @MCS0, -68dBm @MCS7

802.11a: -90dBm @6Mbps

802.11a: -71dBm @54Mbps



■ 2.4GHz:

802.11n (HT20/40): -83dBm @MCS0

802.11n (HT20/40): -66dBm @MCS7

802.11g: -86dBm @54Mbps

802.11g: -72dBm @54Mbps

802.11b: -93dBm @1Mbps

802.11b: -85dBm @11Mbps

Software Features

Operation Mode (NMS)

■ AP Controller ■ Managed AP

Wireless Mode

■ AP (Access Point)

■ WDS PTP (Point to Point)

■ Repeater

■ WDS PTMP (Point to Multipoint)

Encryption Security

■ WEP (64/128-bit) encryption security

■ WPA/WPA2 (TKIP/AES)

■ WPA-PSK/WPA2-PSK (TKIP/AES)

■ 802.1x authentication

Wireless Security

■ Wireless MAC address filtering up to 256 entries

■ Wireless Client Isolation: STA separator, SSID separator

■ Supports WPS (Wi-Fi Protected Setup)

■ Enable/Disable SSID broadcast

Wireless Advanced

■ 6-level adjustable Tx power (100%, 90%, 75%, 50%, 25%, 10%)

■ Multiple SSIDs: up to 16 at 2.4GHz and 16 at 5GHz

■ Tagged VLAN per SSID, tagged VLAN over WDS

■ Auto-channel selection: enables an AP to determine the best channel

available

■ Rogue AP detection

■ Provides wireless statistics for system administrator monitoring

Max. Clients

Wired: 253
2.4GHz Wireless: 50
5GHz Wireless: 50

Max. WDS Peers

Up to 4 at 2.4GHz and 4 at 5GHz

QoS

■ IEEE 802.11e WMM (Wi-Fi Multimedia)

■ Station Idle Timeout: Enables and configures it to prevent inactivated

clients from occupying the connection.

■ AP Load Balancing: To balance the distribution of wireless client

connections across multiple APs.

■ Supports multicast rate adaptation mechanism to guarantee the wireless

bandwidth and service quality.

LAN

Static IP, DHCP Client, DHCP Server
Supports 802.1d Spanning Tree (RTSP)
Supports 802.1Q tagged/untagged VLAN (VID: 1-4095)

System Management

■ NMS firmware-based management interface:

- Supports up to 5 managed APs with no additional wireless controller

- Features dashboard and zone plan with heat map, AP cluster

management, AP bulk firmware upgrade, AP/client status monitoring

■ Web-based (HTTP/HTTPS/SSH/CLI) management interface

■ SNMP v1, v2c, v3 management interface

■ Built-in RADIUS server with EAP authentication (MS-PEAP),

user account up to 256

■ SNTP synchronization

■ Easy firmware upgrade

■ Supports self-healing (schedule reboot) mechanism for

reliable connection

■ Supports PLANET Smart Discovery Utility

■ Supports system log and syslog server

Standards Conformance

IEEE Standards

IEEE 802.11ac (wave 1, 3T3R, up to 1300Mbps)
IEEE 802.11n (3T3R, up to 450Mbps)
IEEE 802.11g
IEEE 802.11a
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet

Other Protocols and Standards

CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP

Environment & Certification

Temperature

Operating: 0 ~ 50 degrees C
Storage: -20 ~ 60 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing)

Regulatory

FCC, CE
