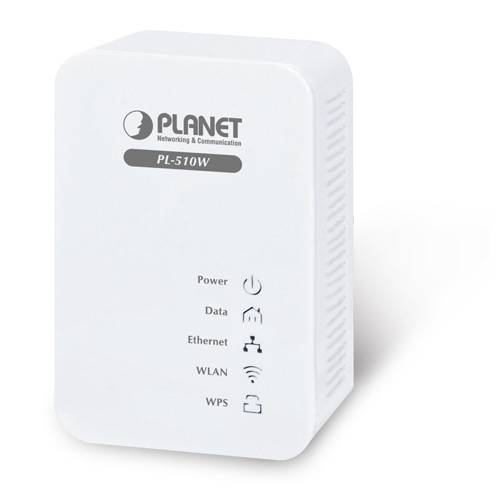

Wi Fi точка доступа Planet PL-510W

Hardware Specifications

Network Interface

One RJ-45 port (10/100Base-T Ethernet)
One 200Mbps power line port supporting co-existence with
HomePlug 1.0 (14/85Mbps)

Antenna

Gain: 2 x Internal 2.5dBi Antenna
Orientation: Horizontal and Vertical

Cabling

Cat. 5 UTP cable

LED

Power：On / Off
Ethernet： Solid / Blinking / Off
Data：Solid / Blinking / Off
WLAN：Solid / Blinking / Off
WPS：Solid / Blinking / Off

Buttons

One WPS / Reset button
One Pair button

Wireless Interface Specifications

Standard

IEEE 802.11b/g/n

Working Mode

AP mode

Frequency Band

2.4~2.4835GHz

Data Transmission Rates

802.11b: 11/5.5/2/1Mbps (Dynamic)
802.11g: 54/48/36/24/18/12/9/6Mbps (Dynamic)
802.11n (40MHz): 270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps (Dynamic)
802.11n (20MHz): 130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic)

Transmission Distance

Indoor up to 100m

Channel

America / FCC: 2.412~2.462GHz (11 Channels)
Europe / ETSI: 2.412~2.472GHz (13 Channels)
Japan / TELEC: 2.412~2.484GHz (14 Channels)

Channel Width

20 / 40MHz

Max. RF Power

802.11b: 17±1.5dBm
802.11g: 14.5±1.5dBm
802.11n (20MHz): 12.5±1.5dBm
802.11n (40MHz): 12.5±1.5dBm

Receive Sensitivity

802.11b: -92dBm @ 1Mbps; -85dBm @ 11Mbps, PER < 8%
802.11g: -88dBm @ 6Mbps; -73dBm @ 54Mbps, PER <10%
802.11n: -90dBm @ MCS8; -70dBm @ MCS15, PER <10%

Encryption Security

WEP (64/128-bit) encryption security
WPA / WPA2 (TKIP/AES)
WPA-PSK / WPA2-PSK (TKIP/AES)

Standards Conformance

Computer Interface

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

Standards

IEEE 1901 / HomePlug AV

Security

128-bit AES link encryption with key management

Data PHY Rate

200Mbps over Powerline and 10/100Mbps over Ethernet

Modulation Schemes

OFDM symbol modulation on line synchronization
1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier
modulation

Frequency Band

2 ~ 30 MHz

Additional Protocols

Mix of TDMA and CSMA/CA channel access scheme;
CO device generates a periodic beacon carrier for channel
access scheme
QoS prioritizes both wired and wireless Internet traffic to bandwidth‐sensitive applications like online gaming, IPTV or stream multimedia

Operation Range

Estimated range of 300 meters in wall powerlines

Environment Specifications

Operating

Temperature: 0~40 degrees C
Relative Humidity:10~90% (non-condensing)

Storage

Temperature: -40~70 degrees C
Relative Humidity: 0~90% (non-condensing)

Power Supply

100~240V AC, 50~60Hz internal

Housing Dimensions (W x D x H)

94 x 29.85 x 32 mm

Weight

94 g

Emission

FCC, CE
