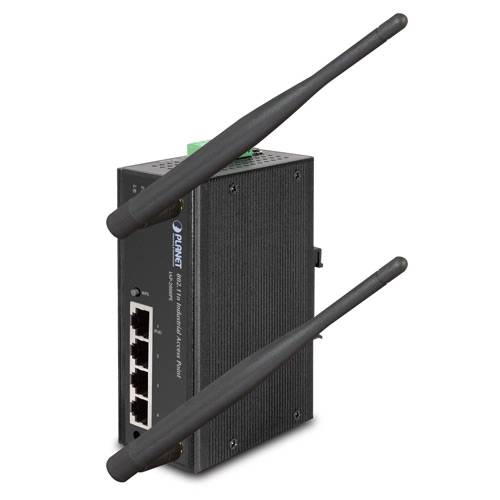

Wi Fi точка доступа Planet IAP-2000PE

Hardware Specifications

10/100Base-TX Ports

4 x 10/100Base-TX auto-negotiation
Auto MDI / MDI-X

IEEE 802.3af PoE Ports

1 x PD (Port-1)

Antenna

2 x Detachable RP-SMA connector
2 x 5dBi SMA omni-directional antenna included in the package

Enclosure

IP 30 metal case

LED Indicators

P1, P2, PWR, FAL, WPS, WLAN, SEC, LAN1~4, PoE

Button

WPS button
Reset button

Dimensions (W x D x H)

87.8 x 135 x 56 mm

Weight

871g

Power Requirements

DC 12-48V / AC 24V

Installation

DIN rail kit and wall mount ear

Wireless Interface Specifications

Standard

Compliant with IEEE 802.11b/g/n

Frequency Band

2.4 to 2.4835GHz (Industrial Scientific Medical Band)

Modulation Type

DSS with DBPSK, DQPSK, QPSK and CCK
OFDM with BPSK, QPSK, 16-QAM and 64-QAM

Wireless Data Rate

IEEE 802.11b: 1/ 2/ 5.5/ 11Mbps
IEEE 802.11g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54Mbps
IEEE 802.11n: 14/ 29/ 43/ 58/ 87/ 116/ 130/ 144Mps in 20MHz
30/ 60/ 90/ 120/ 180/ 240/ 270/ 300Mbps in 40MHz

Opt. Channel

America / FCC: 2.414~2.462GHz (11 Channels)
Europe / ETSI: 2.412~2.472GHz (13 Channels)
Japan / TELEC: 2.412~2.484GHz (14 Channels)

RF Output Power

802.11b: 18 dBm
802.11g: 15 dBm
802.11n: 15 dBm

Receiver Sensitivity

802.11b CCK 1.0Mbps: -94dbm
802.11b CCK 11.0Mbps: -91dbm
802.11g OFDM 6Mbps: -92dbm
802.11g OFDM 54Mbps: -76dbm
802.11n 20MHz MCS7: -72dbm
802.11n 40MHz MCS7: -70dbm

Wireless Management Features

Wireless Mode

Access point

Channel Width

20MHz / 40MHz

Data Encryption Security

64 bit / 128 bit WEP
WPA / WPA2
WPA-PSK / WPA2-PSK
802.1x network access control

Management

Web-based configuration

Wireless Isolation

Yes

Protocol

Protocol / Feature

Bridge mode
IPv6
WDS and WPS
Static Routing and RIPv1/2
DMZ and Virtual Server
802.1D
802.1Q VLAN
QoS
SNTP
WMM
DHCP Server / Client
IGMP Proxy and DNS Proxy
UPnP and DDNS
SNMP

Management

Web-based configuration

Standards Conformance

Standards Compliance

IEEE 802.11b/g and 802.11n Wireless LAN
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.1Q VLAN

Environment Specifications

Temperature / Humidity

Operating: -10~60 degrees C, 5~ 90% (non-condensing),
Storage: -20~70 degrees C, 0~95% (non-condensing)

Emission

FCC, CE
