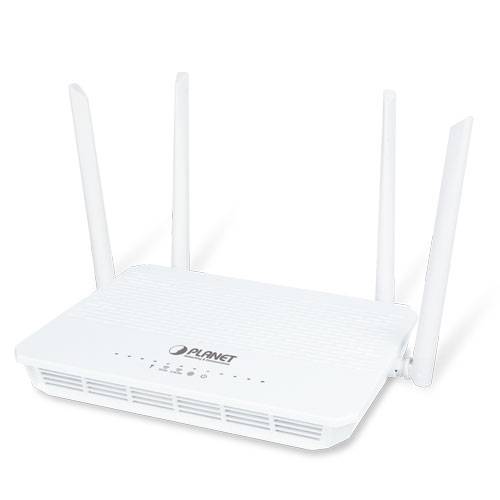

Wi-Fi роутер Planet WDRT-1202AC

Hardware Specifications

Interface

WAN Port: 1 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port
LAN Port: 4 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port (LAN1~4)
USB Port: 1 x USB 2.0, Type A, 5V 500mA

Antenna

Gain:
2.4GHz: 2 x 5dBi external antenna
5GHz: 2 x 5dBi external antenna

Button

1 x reset button (Press for about 10 seconds to reset the device to factory default.)
1 x WPS/Wi-Fi button (Press for 1 to 5 seconds to enable or disable WLAN function; press over 5 seconds to enable WPS function.)

LED Indicators

PWR x 1
WLAN (2.4GHz & 5GHz) x 2
WAN x 1
WPS x 1

Material

Plastic

Dimensions (W x D x H)

250 x 185 x 38 mm (W x D x H)

Weight

322g

Power Requirement

12V DC, 1.5A

Power Consumption

10W

Wireless interface Specifications

Standard

IEEE 802.11ac 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz

Frequency Band

Simultaneous 2.4GHz and 5GHz

Modulation Type

802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)

Data Rates

2.4GHz up to 300Mbps
5GHz up to 867Mbps

Channel

2.4GHz:

FCC (America): 2.412~2.462GHz (11 Channels)

ETSI (Europe): 2.412~2.472GHz (13 Channels)



5GHz:

5.180-5.240GHz, 5.745-5.825GHz (up to 9 channels)

*The actual channels in application will vary depending on the regulation in different regions and countries.

Channel Width

802.11ac: 20/40/80MHz
802.11n: 20/40MHz

Max. RF Power / EIRP

2.4GHz: < 20dBm
5GHz: < 20dBm

Receive Sensitivity

2.4GHz:
11b(11Mbps): -85dBm
11g(54Mbps): -70dBm
11n(20M) mode: -70dBm
11n(40M) mode: -68dBm

5GHz:
11a: -74dBm
11n(20M) mode: -70dBm
11n(40M) mode: -67dBm
11ac(20M) mode: -67dBm
11ac(40M) mode: -61dBm
11ac(80M) mode: -57dBm

Transmit Power Control

Low, Medium, High

Wireless Management Features

Encryption Security

WPA/WPA2 personal mixed mode

Wireless Security

Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup)

Wireless Advanced

Supports dual-SSID (2.4G and 5G)
Supports guest network

Max. Supported Clients

2.4GHz wireless: 32
5GHz wireless: 32

Router Features

Internet Connection Type

Shares data and Internet access for users, supporting the following

■ Internet accesses:

■ DHCP

■ Static IP

■ PPPoE

■ PPTP

■ L2TP

■ DS Lite

Firewall

NAT firewall, SPI firewall
Built-in NAT server which supports Port Forwarding and DMZ
Built-in firewall with URL filtering, and MAC address filtering

LAN

Built-in DHCP server supporting static IP address distribution
Supports packet statistics

USB Sharing

Samba
DLNA media server

System Management

Web-based (HTTP) management interface
Remote management (WAN Access Control)
Supports UPnP, PLANET DDNS
SNTP synchronization
System log and e-mail events notification

Standards Conformance

IEEE Standards

IEEE 802.11ac (2T2R, up to 867Mbps)
IEEE 802.11n (2T2R, up to 300Mbps)
IEEE 802.11a
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T

Other Protocols and Standards

CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP

Regulatory

CE, RoHS, WEEE

Environment

Temperature

Operating: 0 ~ 40 degrees C
Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 95% (non-condensing)
