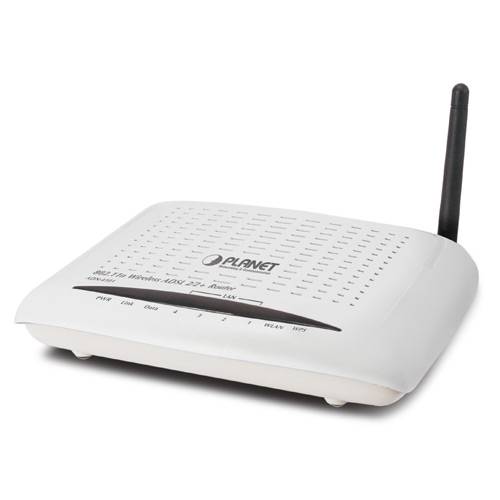

Wi-Fi роутер Planet ADN-4101

Hardware

Standard

Compliant with ADSL Standard
- Full-rate ANSI T1.413 Issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs, Multimode (ITU G.994.1)
Capable of ADSL2 Standard
- G.dmt.bis (ITU G.992.3)
Capable of ADSL 2+ Standard
- G.dmt.bisplus (ITU G.992.5)
- Reach Extended ADSL (RE ADSL)
Supports Annex A, B, M, L

Protocol

RFC 2364 - PPP over ATM (LLC/VCMUX)
RFC 2516 - PPP over Ethernet (LLC/VCMUX)
RFC 1483 - Classic IP over ATM (LLC/VCMUX)
RFC 2684 - Bridged IP over ATM (LLC/VCMUX)
RFC 2684 - Routed IP over ATM (LLC/VCMUX)

AAL and ATM Support

Supports up to 8 PVCs
ATM Forum UNI 3.1/4.0 PVC
VC and LLC Multiplexing
Integrated ATM AAL5 support (UBR,CBR,VBR-rt, and VBR-nrt)
0~255 VPI plus 1~65535 VCI address range
OAM F4 & F5 Segment end-to-end loop-back, AIS, and RDI OAM cells

Ports

LAN
4 x Ethernet (10/100Mbps, Auto-Negotiation, Auto MDI/MDI-X)

WLAN
1 x 802.11b/g/n Access Point with one 2dBi dipole antenna

WAN
1 x RJ-11

LED Indicators

PWR, Link, Data, LAN 1~4, WLAN, WPS

Button

WLAN, Reset, WPS, Power

Max. Concurrent Sessions

2048

Wireless Standard

IEEE 802.11b, 802.11g and 802.11n

Wireless Frequency

2.4 to 2.4835GHz (Industrial Scientific Medical Band )

Wireless Channels

Maximum 14 Channels, depending on regulatory authorities

Wireless Data Encryption

64 bit / 128 bit WEP, WPA-PSK / WPA2-PSK, and WPS PBC

Wireless Data Rate

Maximum up to 150 Mbps
IEEE 802.11b
1/2/5.5/11Mbps
IEEE 802.11g
6/9/12/18/24/36/48/54Mbps
IEEE 802.11n 20MHz
14/29/43/58/87/116/130/144Mps
IEEE 802.11n 40MHz
30/60/90/120/150Mbps

RF Modulation

IEEE 802.11b mode: DSSS (CCK, QPSK, BPSK)
IEEE 802.11g mode: OFDM (BPSK, QPSK, 16QAM, 64QAM)
HT20 and HT40: 64 QAM, 16QAM, QPSK, BPSK

Transmit Power

11b: 16.5dBm ± 1.5dBm
11g: 14dBm ± 1.5dBm
11n HT20M:13dbm ± 1.5dBm
11n HT40M: 13dbm ± 1.5dBm

Receiver Sensitivity

802.11b: < -80dBm
802.11g: < -68dBm
802.11n HT20M: < -64dbm
802.11N HT40M: < -61dbm

Software

Protocols/Features

NAT supports multimedia applications
NAT, Static Routing, and RIPv1/2
Transparent Bridging
Dynamic Domain Name System (DDNS)
SNTP
DNS relay and IGMP proxy
DMZ and Virtual Server
Quality of Service (QoS) for Traffic Prioritization
TR-069 Ready
UPnP

Security

PPP over PAP (Password Authentication Protocol, RFC1334)
PPP over CHAP (Challenge Authentication Protocol, RFC1994)
DoS Protection
Access Control
ACL (Access Control)
IP/MAC/Application/URL Filter
Stateful Packet Inspection (SPI) Firewall
Password protection for system management

Management

Web-based configuration
Embedded Telnet server for remote and local management
Firmware upgraded and configuration data upload/download via WEB
SNMP v1/v2c MIB supported
Support DHCP Server/Client/Relay
Built-in Diagnostic tool
TR-069

Environment Specification

Dimensions (W x D x H)

176 x 124 x 35 mm

Power

12V DC, 0.8A

Temperature and Humidity

Operating temperature: 0 ~ 50 degrees C
Storage temperature: -10 ~ 70 degrees C
Humidity: 10 ~ 95% non-condensing

Emission

FCC, CE
