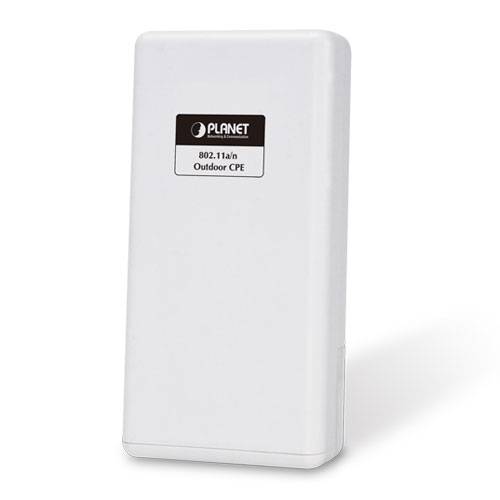

Точка доступа Planet WNAP-7335

Hardware

Standard Support

IEEE 802.11a/n
IEEE 802.3
IEEE 802.3u
IEEE 802.3x

Memory

64 Mbytes DDR SDRAM
16 Mbytes Flash

PoE

Passive PoE

Interface

Wireless IEEE802.11a/n, 2T2R
PoE LAN (LAN 1): 1 x 10/100BASE-TX, auto-MDI/MDIX, passive PoE
LAN 2: 1 x 10/100BASE-TX, auto-MDI/MDIX, passive PoE pass-through

Antenna

Built-in RP-SMA antenna connectors

Wireless RF Specifications

Wireless Technology

IEEE 802.11a
IEEE 802.11n

Data Rate

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbp

Media Access Control

CSMA/CA

Modulation

Transmission/Emission type: OFDM
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM

Frequency Band

5.180GHz ~ 5.825GHz

Operating Channel

5.180GHz CH36 5.580GHz CH116
5.200GHz CH40 5.600GHz CH120
5.220GHz CH44 5.620GHz CH124
5.240GHz CH48 5.640GHz CH128
5.260GHz CH52 5.660GHz CH132
5.280GHz CH56 5.680GHz CH136
5.300GHz CH60 5.700GHz CH140
5.320GHz CH64 5.745GHz CH149
5.500GHz CH100 5.765GHz CH153
5.520GHz CH104 5.785GHz CH157
5.540GHz CH108 5.805GHz CH161
5.560GHz CH112 5.825GHz CH165
*The 24 channels are defined by the theory. The actual application will vary based on the regulation in different regions and countries.

RF Output Power (Max.)

802.11a 25 ±1dBm
802.11n 24 ±1dBm

Receiver Sensitivity(dBm)

802.11a -94dBm
802.11n -93dBm

Output Power Control

12~27dBm

Software Features

LAN

Built-in DHCP server supporting static IP address distribution
Supports 802.1d STP (Spanning Tree)

WAN

■ Static IP

■ Dynamic IP

■ PPPoE

Operating Mode

■ Bridge

■ WISP

Firewall

NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting virtual server and DMZ
Built-in firewall with port/ IP address/ MAC/ URL filtering

Wireless Mode

■ AP/ Router

■ Client

■ WDS PTP

■ WDS PTMP

■ WISP

Channel Width

20MHz / 40MHz

Wireless Isolation

Enable to isolate each connected wireless client to let them cannot access mutually

Encryption Type

64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x

Wireless Security

Wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Enable/Disable SSID Broadcast

Max. Wireless Clients

25

Max. WDS APs

8

Max. Wired Clients

60

WMM

Supports Wi-Fi multimedia

QoS

Supports Quality of Service for bandwidth control

NTP

Network Time Management

Self Healing

Supports Schedule Reboot

Management

Web UI, DHCP Client, Configuration Backup and Restore, Dynamic DNS, and SNMP

Diagnostic Tool

System Log, Ping Watchdog

Mechanical and Power

IP Level

IP55

Material

Outdoor UV Stabilized Enclosure

Dimensions (W x D x H)

127 x 63 x 254 mm

Weight

366g

Installation

Pole mounting or wall mounting

Power Requirements

LAN1

■ 24V DC, 1A/ Passive PoE

■ Pin 4,5 V DC+

■ Pin 7,8 V DC-

■ Pin 3 Reset

Power Consumption

12W

Environment and Certification

Operating Temperature

-20~70°C

Operating Humidity

10~95% non-condensing

Regulatory

CE, FCC, RoHS

Accessory

Standard Accessories

■ WNAP-7335 x 1

■ 24V DC Passive PoE Injector & Power Cord x 1

■ Plastic Strap x 1

■ Quick Installation Guide x 1
