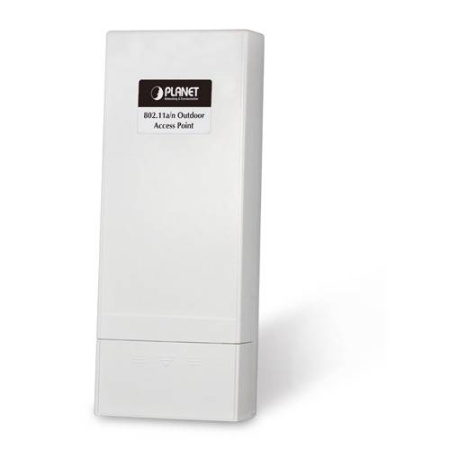

Точка доступа Planet WNAP-7300

Product

Standard support

IEEE 802.11a/n
IEEE 802.3u

Interface

Wireless IEEE802.11a/n
LAN: 2 x 10/100Base-TX, auto-MDI/MDIX

Modulation

OFDM with BPSK, QPSK, 16-QAM, 64-QAM

Antenna

Internal (default): 16dBi dual-polarity Antenna
*Vertical Port HPBW
(YZ Plane /H-Plane)：36 degrees
(XZ Plane /E-Plane)：15 degrees
*Horizontal Port HPBW
(YZ Plane /E-Plane)：38 degrees
(XZ Plane /H-Plane)：17 degrees
External: RP-SMA Connector x 2
*internal & external antenna switchable by software

Receiver Sensitivity

IEEE 802.11a:
-89 dBm @ 6 Mbps
-88 dBm @ 9 Mbps
-87 dBm @ 12 Mbps
-86 dBm @ 18 Mbps
-83 dBm @ 24 Mbps
-79 dBm @ 36 Mbps
-75 dBm @ 48 Mbps
-73 dBm @ 54 Mbps
IEEE 802.11n:
HT20 MCS0~MCS7 ≦ -89dBm
HT40 MCS0~MCS7 ≦ -85dBm
HT20 MCS8~MCS15 ≦ -83dBm
HT40 MCS8~MCS15 ≦ -80dBm

Max. Output Power

FCC
802.11a: 24 ± 2dBm
802.11n: 23 ± 2dBm (HT20/40)
ETSI
<20dBm (EIRP)

Output Power Control

5 levels adjustable:
Full = 24dBm
50% = 21dBm
25% = 18dBm
12.5% = 15dBm
Min. = 12dBm

Data Rate

802.11a:
54/48/36/24/18/12/9/6Mbps
802.11n:
HT20/40 MCS0~15 (6.5Mbps to 300Mbps)

Frequency Range

FCC: 5725~5850 MHz
CE: 5470~5725 MHz (DFS band)

Wireless Security

64/128/152-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X

Wireless Access Mode

AP, Client, Client CPE (WISP), WDS, AP+WDS

Environmental Protection Rating

IP55

Dimension (W x D x H)

110.98 x 255.6 x 47.65 mm

Power Adapter

Up to 24V DC (passive PoE)

Operating Environment

Temperature: -20 ~ 70 degrees C
Humidity: 10 ~ 95% non-condensing
