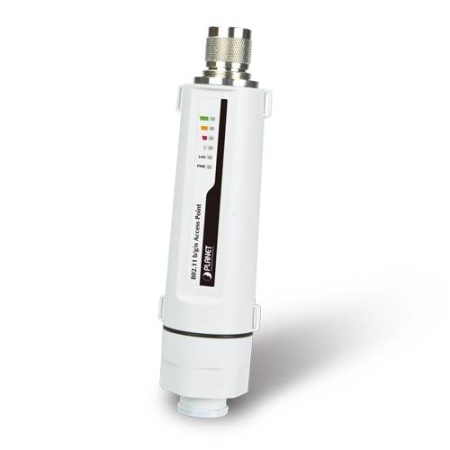

Точка доступа Planet WNAP-6308

Hardware Specifications

Hardware Specifications

IEEE 802.11b/g/n Wireless LAN
IEEE 802.11i Wireless Security
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3x Flow Control

Memory

32 Mbytes DDR SDRAM
8 Mbytes Flash

Interface

Wireless IEEE 802.11b/g/n, 1T1R
LAN / WAN: 1 x 10/100Base-TX, Auto-MDI / MDIX

Antenna

Built-in N-type (Male) Antenna Connector

Wireless RF Specifications

Wireless Technology

IEEE 802.11b/g
IEEE 802.11n

Data Rate

IEEE 802.11b: 11, 5.5, 2 and 1Mbps
IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
IEEE 802.11n (20MHz): up to 72Mbps
IEEE 802.11n (40MHz): up to 150Mbps

Media Access Control

CSMA / CA

Modulation

Transmission/Emission Type: DSSS / OFDM
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM,
DBPSK, DQPSK, CCK

Frequency Band

2.412GHz ~ 2.484GHz

Operating Channel

America/ FCC: 2.414~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels)

RF Output Power (Max.)

IEEE 802.11b/g: 23 ± 1.5dBm
IEEE 802.11n: 23 ± 1.5dBm

Receiver Sensitivity

IEEE 802.11b/g: -95dBm
IEEE 802.11n: -91dBm

Output Power Control

3~23dBm

Software Features

LAN

Built-in DHCP Server supporting static IP address distributing
Supports 802.1d STP (Spanning Tree)

WAN

■ Static IP
■ Dynamic IP
■ PPPoE
■ PPTP
■ L2TP
■ IPSec

Operating Mode

■ Bridge
■ Gateway
■ WISP

Firewall

NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT Server supporting Virtual Server and DMZ
Built-in Firewall with Port / IP Address / MAC / URL Filtering

Wireless Mode

■ AP
■ Client
■ WDS PTP
■ WDS PTMP
■ WDS Repeater (AP+WDS)

Channel Width

20MHz / 40MHz

Wireless Isolation

Enables isolation of each connected wireless client from communicating with each other mutually

Encryption Type

64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X

Wireless Security

Wireless LAN ACL (Access Control List) Filtering
Wireless MAC Address Filtering
Supports WPS (Wi-Fi Protected Setup )
Enable / Disable SSID Broadcast

Multiple SSID

Up to 2

Max. Wireless Client

20

Max. WDS AP

8

Max. Wired Client

30

WMM (Wi-Fi Multimedia)

Yes

QoS (Quality of Service)

Yes

NTP(Network Time Management)

Yes

Management

Web UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS, SNMP

Diagnostic Tool

System Log, Ping Watchdog

Mechanical & Power

IP Rate

IP55

Material

Outdoor UV Stabilized Enclosure

Dimensions (Φ x H)

45 x 169 mm

Weight

128g

Installation

Pole mounting

Power Requirements

LAN: 12~24V DC, Passive PoE
Pin 4,5 V DC+
Pin 7,8 V DC-

Power Consumption

1.5W

Environment & Certification

Operating Temperature

-35 ~ 65 degrees C

Operating Humidity

5 ~ 90% non-condensing

Regulatory

CE / FCC / RoHS

Accessory

Standard Accessories

■ Passive PoE Injector & Power Cord x 1
■ Plastic Strap x 2
■ Quick Installation Guide x 1
■ CD (User’s Manual, Quick Installation Guide) x 1
