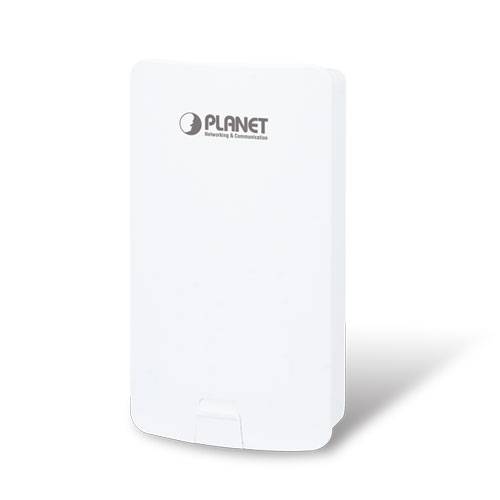

Точка доступа Planet WBS-200N

Hardware

Standard Support

IEEE 802.11b/g/n
IEEE 802.3
IEEE 802.3u
IEEE 802.3x

Memory

64 Mbytes DDR SDRAM
16 Mbytes Flash

PoE

Passive PoE

Interface

Wireless IEEE 802.11b/g/n, 2T2R
PoE LAN (LAN 1): 1 x 10/100BASE-TX, auto-MDI/MDIX, 24V passive PoE In
LAN 2: 1 x 10/100BASE-TX, auto-MDI/MDIX

Button

Reset button

LED

PWR, LAN, WLAN, Signal Strength

Material

Plastic

Dimension (WxDxH)

100 x 29 x 186mm

Weight

300g

Antenna

Built-in 8dBi directional antenna with dual polarization

[Port1]
HPBW Horizontal: 78 degrees
HPBW Vertical: 45 degrees

[Port2]
HPBW Horizontal: 54 degrees
HPBW Vertical: 59 degrees

Data Rate

IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: up to 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbps

Media Access Control

CSMA/CA

Modulation

Transmission/Emission type: OFDM
Data Modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM

Frequency Band

2.412GHz - 2.472GHz

Operating Channels

United States -- FCC: 2.414~2.462GHz (11 channels)
Europe -- ETSI: 2.412~2.472GHz (13 channels)

Max. Transmit Power (dBm)

FCC : IEEE 802.11b/g/n: up to 26 ± 2dBm
ETSI : IEEE 802.11b/g/n: < 20dBm (EIRP)

Receiver Sensitivity (dBm)

IEEE 802.11b:

-95/ -93dBm (1~2/ 5.5~11Mbps)



IEEE 802.11g:

-95/ -93/ -92/ -80/ -77/ -75dBm (6/ 9~18/ 24/ 36/ 48/ 54Mbps)



IEEE 802.11n:

MCS0/ MCS8 : -95dBm

MCS1/ MCS9 : -93dBm

MCS2/ MCS10 : -92dBm

MCS3/ MCS11 : -90dBm

MCS4/ MCS12 : -86dBm

MCS5/ MCS13 : -83dBm

MCS6/ MCS14 : -76dBm

MCS7/ MCS15 : -73dBm

Power Consumption

Maximum 7.2W

Power Requirements

LAN1
24V DC, 0.6A/ Passive PoE
Pin 4, 5 V DC+
Pin 7, 8 V DC-

Environment and Certification

Operating Temperature

-20~70 degrees C

Operating Humidity

10~90% (non-condensing)

IP Level

IP55

Regulatory

CE, FCC, RoHS

Software

LAN

■ Static IP

■ Dynamic IP

■ DHCP server in WISP mode



Supports 802.1d STP (Spanning Tree Protocol)

WAN Connection Type (WISP Mode only)

■ Static IP
■ Dynamic IP
■ PPPoE
■ PPTP

Firewall

Offers DoS protection to guard user's content network against DoS attacks
Built-in DMZ and Port Forwarding
VPN Pass-through:
■ PPTP Pass-through
■ L2TP Pass-through
■ IPSec Pass-through

Wireless Modes

■ Access Point
■ Client Bridge
■ WDS (AP/Bridge/Station)
■ Client Router (WISP)/Client AP Router (WISP+AP)
■ Repeater

Channel Width

20MHz, 40MHz

Encryption Type

64-/128-/152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X

Wireless Security

Enable/Disable SSID Broadcast
Wireless MAC address filtering up to 50 entries
VAP Separation, Station Separation

Max. SSIDs

Up to 4

Max. Wireless Clients

Max. 64 (Suggested 32, depending on usage)

Max. WDS Peers

Up to 4

Wireless QoS

Supports Wi-Fi Multimedia (WMM)
Supports Wireless Traffic Shaping per Radio

Wireless Advanced Control

Auto Channel Selection
Auto Transmit Power by Regular Domains
Client Limit Control
Distance Control (Auto Ack Timeout)
Wi-Fi Schedule

Status Monitoring

Connection Status
Device Discovery, PLANET Smart Discovery
Wireless Client List/WDS Link List
DHCP Client Table
System Log supports remote syslog server
Signal Strength LEDs in Client Bridge and WDS Station modes

VLAN

VLAN pass-through over WDS
SSID-to-VLAN mapping
Management VLAN (VID: 1~4094)

Self Healing

Supports auto reboot settings

NTP

Network Time Management

Management

Web-based UI, CLI (Command Line Interface) supported
Configuration backup and restore
SNMP v1/v2c/v3 support, MIB I/II, Private MIB

Diagnostic Tools

Built-in Ping, Trace Route, Speed Test Tools
