Артикул:
H30865
По запросу
Под заказ
Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа
Рассчитать доставку
Самовывоз - бесплатно
Почта для заявок: info@linkas.ru
Характеристики
Серия
—

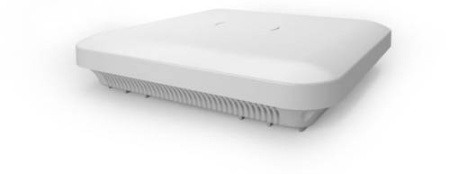

WiNG AP-8122
Тип товара
—
Точка доступа
Тип использования
—
Внутренняя
Тип антенны
—
Внутренняя
Кол-во антенн
—
3
Частота
—
2,4 ГГЦ - 5 ГГЦ
Все характеристики
Условия гарантии
Текст гарантии
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
| AP8122: INDOOR 802.11N AP, INT ANT WR |
Технические характеристики
| 802.11N CAPABILITIES | |
|
|
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 9.0 in. L x 6.0 in. W x 1.77 in. H 230 mm L x 153 mm W x 45 mm H |
| Weight | 3.41 lbs/1.55 kg |
| Housing | Metal and plastic |
| Available mounting |
No additional hardware required to mount (bracket included) |
| Configurations | Under ceiling or on wall |
|
LEDs activity indication |
2 top mounted LEDs |
| Uplink |
1 port (GE1) Auto-sensing 10/100/1000Base-T Ethernet; 802.1at on GE1 LAN port |
| Console port | RJ45 Console Port |
| USER ENVIRONMENT | |
| Operating Temp. | 32° F to 104° F/0° C to 40° C |
| Storage Temp. | -40° F to 185° F/-40° C to 85° C |
| Operating humidity | 5 to 95% RH non-condensing |
|
Electrostatic discharge |
15kV air, 8kV contact |
| POWER SPECIFICATIONS | |
| Operating voltage | 48V |
| Operating current | 310mA or 520mA |
|
Integrated PoE support |
802.3af and 802.3at |
| Aux power supply | 30W (625mA@48V) DC auxiliary power supply |
| NETWORKING SPECIFICATIONS | |
| Layer 2 and Layer 3 | Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE, and LLDP |
| Security | Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple-Methodology Rogue Detection: 24x7 dual-band WIPS sensing, MU-assisted, on-board IDS and secure guest access (Hotspot) |
|
Quality of Service (QoS) |
WMM, WMM-UAPSD, 802.1p, Diffserv and TOS |
| RADIO SPECIFICATIONS | |
| Wireless medium |
Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM) and Spatial multiplexing (MIMO) |
| Network standards | IEEE 802.11a/b/g/n, 802.11d and 802.11i WPA2, WMM and WMM-UAPSD |
|
Data rates supported |
802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48, and 54Mbps 802.11a: 6,9,12,18,24,36,48, and 54Mbps 802.11n: MCS 0-23 up to 450Mbps |
| Operating channels |
2.4GHz band: channel 1 through channel 13; 5.2GHz band: channel 36 through channel 165. * Channel availability depends on local regulatory restriction |
|
Maximum available transmit power per chain (conducted) |
2.4GHz: 23dBm 5.2GHz: 20dBm |
|
Maximum available transmit power per AP (composite, 0dBi antenna) |
2.4GHz: 27.7dBm 5.2GHz: 24.7dBm |
|
Antenna configuration |
3x3 MIMO (transmit/receive on all three antennas) and green mode (dynamical antenna selection). |
|
Transmit power adjustment |
1dB increment from 0dBm to max. |
|
Operating frequencies |
2412 to 2472Mhz, 5180 to 5825 MHz |
| REGULATORY | |
|
Product safety certifications |
UL / cUL 60950-1, IEC / EN60950-1, RoHS |
| Radio approvals | FCC (USA), Industry Canada, CE (Europe), China, Australia |
|
Серия
|
WiNG AP-8122 |
|
Тип товара
|
Точка доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внутренняя |
|
Кол-во антенн
|
3 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
