Артикул:
31013
По запросу
Под заказ
Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа
Рассчитать доставку
Самовывоз - бесплатно
Почта для заявок: info@linkas.ru
Характеристики
Серия
—
WS-AP3935I
Тип товара
—
Точка доступа
Тип использования
—
Внутренняя
Тип антенны
—
Внутренняя
Кол-во антенн
—
8
Частота
—
2,4 ГГЦ - 5 ГГЦ
Все характеристики
Условия гарантии
Текст гарантии
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

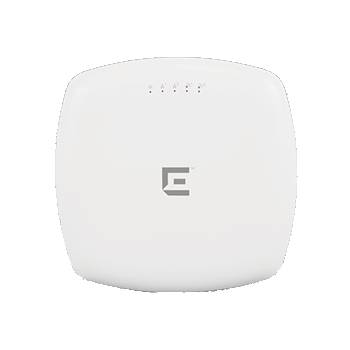

Двухдиапазонная точка доступа Extreme Networks WS-AP3935I-ROWDual Radio 802.11ac / abgn, 4x4: 4 MIMO, wave2 с восемью внутренними антенными решетками и активными / активными портами данных E / N.
| Fully-Featured Enterprise Class AP | + |
| Number of Wi-Fi Radios | 2 |
| MIMO Implementation for High-Performance 11ac & 11n Throughputs | 4x4 |
| Number of Spatial Streams | 4 |
| Number of Simultaneous Users (MU-MIMO) | 3 |
| Maximum Throughput 2.4GHz Radio | 800 Mbps |
| Maximum Throughput 5GHz Radio | 1.733 Mbps |
| Maximum Throughput Per AP | 2.532 Gbps |
| RFC2285 Wire/Wireless Forwarding Rate | 90,000 pps |
| Number of SSIDs Supported Per Radio/Total | 8/16 |
| Simultaneous Users Per Radio/Total | 240/480 |
| Simultaneous Voice calls(802.11b, G711, R>80) | 30 or greater |
| Mode of Operation | Semi-autonomous |
| Plug and Play Operation/Zero Touch Deployment | + |
| Security and Standards | WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12, SSL |
| Multiple Operating Modes |
Distributed and centralized data paths within same SSID Application based distributed and centralized data paths within same user/device session Simultaneous RF monitoring and client services In-channel WIDS In-channel WIPS Dedicated multi-channel WIDS (Guardian mode) Dedicated multi-channel WIPS (Guardian mode) Dedicated multi-channel RF spectrum analysis and fingerprinting Locates devices and threats via RF triangulation Self-forming and self-healing meshing Remote access point Hardware-based, end-to-end data and control plane encryption Private and public cloud deployments SSL |
| Intelligent thin AP | Encryption, Security, QoS and RF management done on AP |
| Hybrid Operation |
Security scanning and serve clients on same radio Security scanning and spectrum analysis on same radio Spectrum analysis and serve clients on same radio Multi-channel dedicated security scanning and spectrum analysis |
| Simultaneous Users (MU-MIMO) | 3 |
| Max Radiated Power | |
| Radio 1 (5GHz) | 29 dBm |
| Radio 2 (2.4GHz) | 27 dBm |
| Max Antenna Gain (Integrated Antenna) | |
| Radio 1 (5GHz) | 5 dBi (AP3935i) |
| Radio 2 (2.4GHz) | 3 dBi (AP3935i) |
| Adaptive Radio Management |
Efficient use of the spectrum with a multi-channel architecture Automatic transmit power and channel control Self-healing with coverage gap detection Band steering with multiple steering modes Spectrum load balancing of clients Airtime fairness Performance protection in congested RF environments Fast Transition Roaming (802.11k) Mitigates co-channel interference with coordinated access Mitigates adjacent channel interference with optimized receive sensitivity Efficient reuse of channels at shorter intervals Mitigates non 802.11 interference without dedicated radios Probe Suppression and client link monitoring Management Frame Protection (802.11w) Automatic discovery of networks by pre-authenticated devices (802.11u) |
| Dynamic Channel Control | 802.11h: DFS & TPC support (ETSI) |
| Quality of Service |
Quality of Service (WMM, 802.11e) Power Save (U-APSD) Fast secure roaming and handover between APs (802.11r) Pre-Authentication (Pre-Auth) Opportunistic Key Caching (OKC) Bonjour/LLMNR/UPnP identification, containment and control Supports voice, video, and data using the same SSID Prioritizes voice over data for both tagged and untagged traffic Rate limiting (rule and user-based) Rule and role based QoS processing |
| Multicast Rate Control |
Multicast to unicast Conversion Adaptable rate multicast Power save mode optimization for multicast |
| Wireless Services | |
| Media Access Protocol | CSMA/CA with ACK |
| Data Rates |
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11 02.11n Performance Table below 802.11ac: See 802.11ac Performance Table below Receiver Sensitivity 802.11a: • -92DdBm @ 6Mbps • -77DdBm @ 54Mbps 802.11g: • -91DdBm @ 6Mbps • -78DdBm @ 54Mbps 802.11n: See 802.11n Receiver Sensitivity Table below 802.11ac: See 802.11ac Receiver Sensitivity Table below |
| Frequency Bands |
802.11ac/a/n: • 5.15 to 5.25 GHz (FCC/IC/ETSI) • 5.25 to 5.35 GHz (FCC/IC/ETSI)* • 5.47 to 5.725 GHz (FCC/IC/ETSI)* • 5.725 to 5.850 GHz (FCC/IC) 802.11b/g/n: • 2.400 to 2.4720 GHz (FCC/IC) • 2.400 to 2.4835 GHz (ETSI) *FCC/IC DFS certification in progress |
| Wireless Modulation |
802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM with OFDM 802.11ac Packet aggregation: A-MPDU, A-MSDU 802.11ac Very High-Throughput (VHT): VHT20/40/80 802.11ac Advanced Features: LDPC, STBC, Maximum Likelihood (ML) Detection 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU 802.11n Advanced Features: LDPC, STBC and TxBF 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11g: DSSS and OFDM 802.11b: DSSS |
| Interfaces | 2 x 10/100/1000 Base T Ethernet autosensing link |
| Mounting |
Integrated Wall Mounting Tool-less drop ceiling bracket for most flat and protruded drop ceilings |
| Environmental |
Plenum rated (UL 2043) Operating: - Temperature 0° C to +47° C (+32° F to +117° F) - Humidity 0%-95% (non-condensing) Storage: - Temperature -50° C to +70° C (-58° F to +158° F) Transportation: - Temperature -50° C to +70° C (-58° F to +158° F) |
| Compliance |
• FCC CFR 47 Part 15, Class B • ICES-003 Class B • FCC Subpart C 15.247 • FCC Subpart E 15.407 • RSS-210 • EN 301 893 • EN 300 328 • EN 301 489 1 & 17 • EN50385 • EN 55022 (CISPR 22) • EN 60601-1-2 • AS/NZS4268 + CISPR22 |
| Safety |
• IEC 60950-1 • EN 60950-1 • UL 60950-1 • CSA 22.2 No.60950-1-03 • AS/NZS 60950.1 |
| Mechanical | |
| Dimensions (Outer Diameter x Height) | 8.46” x 8.46” x 2.2” (21.5 x 21.5 x 5.6 cm) |
| Weight | 1.7 Kg ( 3.7 lbs) |
| Max power consumption | 19W |
| Warranty |
Limited Lifetime |
|
Серия
|
WS-AP3935I |
|
Тип товара
|
Точка доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внутренняя |
|
Кол-во антенн
|
8 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Нет |
