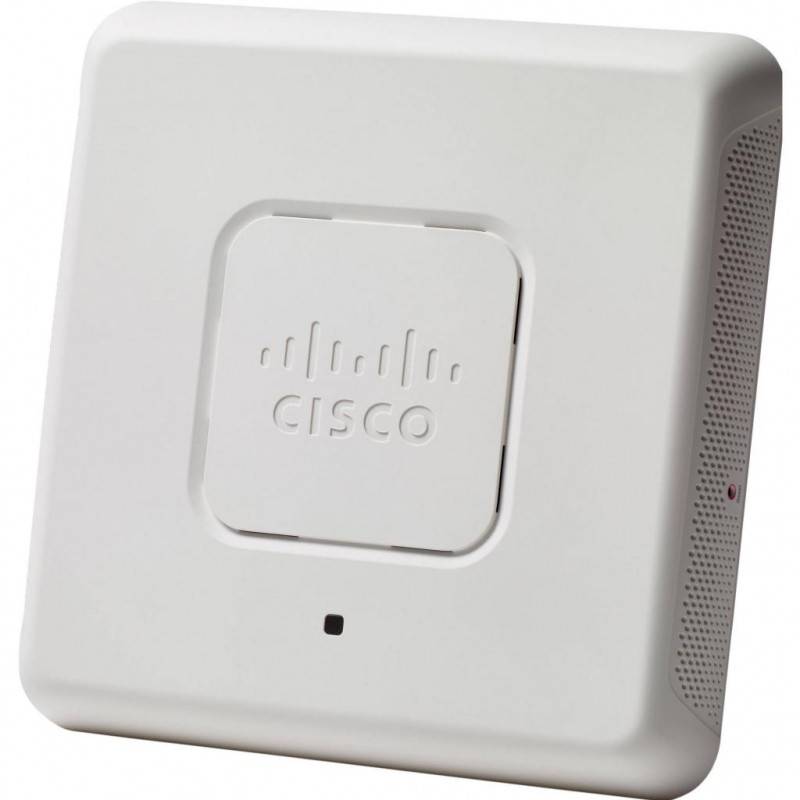

Точка доступа Cisco Small Business 500 WAP571-N-K9

Standards

IEEE 802.11ac, 802.11a, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

Ports

2 LAN Gigabit Ethernet autosensing

Cabling type

Category 5e or better

Antennas

Internal antennas optimized for installation on a wall or ceiling

LED indicators

One LED

Operating system

Linux

Ports

2- 10/100/1000 Ethernet, with support for 802.3at at PoE support is only for 1 port and not 2 ports

Buttons

Reset button

Lock slot

Slot for Kensington lock

LEDs

One multi-function LED

Physical dimensions (W x D x H)

9.05 x 9.05 x 1.57 in. (230 x 230 x 40 mm)

Weight

1.71 lb (778g)

VLAN support

Yes

Number of VLANs

1 management VLAN plus 32 VLANs for SSIDs

802.1X supplicant

Yes

SSID-to-VLAN mapping

Yes

Auto-channel selection

Yes

Spanning tree

Yes

Load balancing

Yes

IPv6

Yes

Layer 2

802.1Q-based VLANS, 32 active VLANS plus 1 management VLAN

WPA, WPA2

Yes, including Enterprise authentication

Access control

Yes, management access control list (ACL) plus MAC ACL

Secure management

HTTPS

SSID broadcast

Yes

Rogue access point detection

Yes

Multiple mounting options

Mounting bracket included for easy ceiling or wall mounting

Physical security lock

Kensington lock slot

QoS

Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), client QoS

Wireless throughput

Up to 1.9Gbps data rate (real-world throughput will vary)

Recommended user support

Up to 200 connective users, 50 active users per radio

Single Point Setup

Yes

Number of access points per cluster

16

Active clients per cluster

960

Web user interface

Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)

Management protocols

Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour

Remote management

Yes

Event logging

Local, remote syslog, email alerts

Network diagnostics

Logging and packet capture

Web firmware upgrade

Firmware upgradable through web browser, imported or exported configuration file

Dynamic Host Configuration Protocol (DHCP)

DHCP client

IPv6 host

Yes

HTTP redirect

Yes

Frequency

Dual concurrent radios (2.4 and 5 GHz)

Radio and modulation type

Dual radio, orthogonal frequency division multiplexing (OFDM)

IEEE 802.11a/n: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)

IEEE 802.11ac: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)

WLAN

802.11n/ac

3x3 MIMO with 3 spatial streams at 5 GHz and 2.4 GHz

21 for 20-MHz bandwidth; 9 for 40-MHz bandwidth; 4 for 80-MHz bandwidth

11 for 20-MHz bandwidth; 7 for 40-MHz bandwidth

802.11 dynamic frequency selection (DFS)

Data rates supported

IEEE 802.11b: DSSS (1/2/5.5/11)

IEEE 802.11g: OFDM (6/9/12/18/24/36/48/54)

IEEE 802.11n: see the below table

IEEE 802.11b: 12.94 MHz

IEEE 802.11g: 24.49 MHz

EEE 802.11n MCS0 (HT20): 27.44 MHz

IEEE 802.11n MCS0 (HT40): 36.18 MHz

IEEE 802.11b: 29.76 dBm

IEEE 802.11g: 29.24 dBm

IEEE 802.11n MCS0 (HT20): 29.25 dBm

IEEE 802.11n MCS0 (HT40): 23.81 dBm
