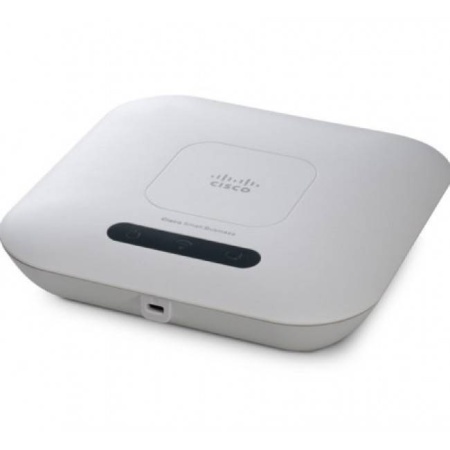

Точка доступа Cisco Small Business 300 WAP321-A-K9

Standards

IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

Ports

Ethernet, Power

Switch

Power button (on/off)

Buttons

Reset

Cabling type

Category 5e or better

LEDs

Power, Wireless, LAN

Operating system

Linux

Ports

Gigabit Ethernet, 12V DC power with support for 802.3af PoE

Power supply

Not included with access point, but supports external power 12V DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af PoE

Buttons

Power (on/off) push button; Reset button

Lock slot

Slot for Kensington lock

LED

Power, Wireless, Ethernet

Physical dimensions (W x D x H)

6.66 x 6.67 x 1.38 in. (169.08 x 169.42 x 35 mm)

Weight

0.606 lb or 275g

PoE

802.3af

Peak PoE power

10.6W

Network protocols

IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), RADIUS, syslog, HTTP/HTTPS, Simple Network Management Protocol (SNMP)

VLAN support

Yes

Number of VLANs

1 management VLAN plus 8 VLANs for SSID

Multiple SSIDs

8

802.1X supplicant

Yes

802.11d

No

SSID to VLAN mapping

Yes

Auto channel selection

Yes

Spanning tree

Yes

Load balancing

Yes

IPv6

Yes

Layer 2

802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN

WEP/WPA/WPA2

Yes, including Enterprise authentication

Access control

Yes, management access control list (ACL) plus MAC ACL

Secure management

HTTPS

Wi-Fi Protected Setup (WPS)

Yes (soft WPS, no hardware push button)
