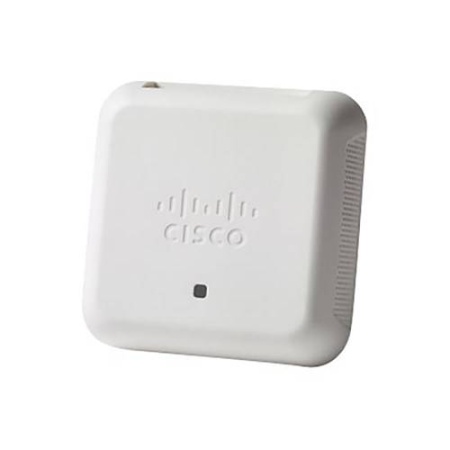

Cisco Small Business 100 организуют надежную защищенность без аппаратного контроллера, гарантируют беспроводное соединение 802. 11n и 802. 11ac, имеют интуитивно понятное управление, легко настраиваются. Позволяют подключать большое количество устройств с сохранением производительности, организуют эффективную работу.
Точки доступа оборудованы упрощенной веб-конфигурацией, располагают улучшенной развертываемостью и масштабируемостью. Охватывают обширную область покрытия без употребления вспомогательного оборудования. Защищают данные, используют расширенные протоколы шифрования.
|
Specifications |
Description |
|
|
Standards |
IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
|
|
Ports |
LAN Gigabit Ethernet auto-sensing |
|
|
Cabling type |
Category 5e or better |
|
|
Antennas |
Internal antennas optimized for installation on a wall |
|
|
LED indicators |
1 multifunction LED |
|
|
Operating system |
Linux |
|
|
Ports |
10/100/1000 Ethernet, with support for 802.3af /at PoE, power port for AC adapter (included) |
|
|
Buttons |
Reset button, power on/off push button |
|
|
Lock slot |
Slot for Kensington lock |
|
|
LEDs |
1 LED |
|
|
Physical dimensions (W x D x H) |
5.31 x 5.31x 1.5 in. (135 x 135 x 38 mm) |
|
|
Weight |
0.77lb or 350g |
|
|
VLAN support |
Yes |
|
|
Number of VLANs |
1 management VLAN plus 8 VLANs for SSIDs |
|
|
802.1X supplicant |
Yes |
|
|
SSID-to-VLAN mapping |
Yes |
|
|
Auto-channel selection |
Yes |
|
|
Spanning tree |
Yes |
|
|
Load balancing |
Yes |
|
|
IPv6 |
Yes ● IPv6 host support● IPv6 RADIUS, syslog, Network Time Protocol (NTP) |
|
|
Layer 2 |
802.1Q-based VLANS, 8 active VLANs plus 1 management VLAN |
|
|
WPA, WPA2 |
Yes, including Enterprise authentication |
|
|
Access control |
Yes, management access control list (ACL) plus MAC ACL |
|
|
Secure management |
HTTPS |
|
|
SSID broadcast |
Yes |
|
|
Rogue access point detection |
Yes |
|
|
Multiple mounting options |
Desktop or Wall |
|
|
Physical security lock |
Kensington lock slot |
|
|
QoS |
Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), client QoS |
|
|
Wireless throughput |
Up to 1.2 Gbps data rate (real-world throughput will vary) |
|
|
Recommended user support |
Up to 64 connective users, 10 active users per radio |
|
|
Single Point Setup |
Yes |
|
|
Number of access points per cluster |
4 |
|
|
Active clients per cluster |
120 |
|
|
Web user interface |
Built-in web user interface for easy browser-based configuration (HTTP, HTTPS) |
|
|
Management protocols |
Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour |
|
|
Remote management |
Yes |
|
|
Event logging |
Local, remote syslog, email alerts |
|
|
Network diagnostics |
Logging and packet capture |
|
|
Web firmware upgrade |
Firmware upgradable through web browser, imported or exported configuration file |
|
|
Dynamic Host Configuration Protocol (DHCP) |
DHCP client |
|
|
IPv6 host |
Yes |
|
|
HTTP redirect |
Yes |
|
|
Frequency |
Dual concurrent radios (2.4 and 5 GHz) |
|
|
Radio and modulation type |
Dual radio, orthogonal frequency division multiplexing (OFDM) |
|
|
WLAN |
802.11n/ac 2x2 multiple-input multiple-output (MIMO) with 2 spatial streams at 5 GHz 2x2 MIMO with 2 spatial streams at 2.4 GHz 20-, 40-, and 80-Mhz channels for 802.11ac 20- and 40-Mhz for 802.11n PHY data rate up to 1.2 Gbps 802.11 dynamic frequency selection (DFS) |
|
|
Data rates supported |
802.11a/b/g: ● 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps● 802.11n: 6.5 to 300 Mbps ◦ 20-MHz bandwidth: MCS 0-15 for supported data rates ◦ 40-MHz bandwidth: MCS 0-15 for supported data rates ● 802.11ac: 6.5 to 867 Mbps ◦ 20-MHz bandwidth: MCS 0-9 for supported data rates ◦ 40-MHz bandwidth: MCS 0-9 for supported data rates ◦ 80-MHz bandwidth: MCS 0-9 for supported data rates |
|
|
Серия
|
Small Business 100 |
|
Тип товара
|
Точка доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внутренняя |
|
Кол-во антенн
|
2 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
