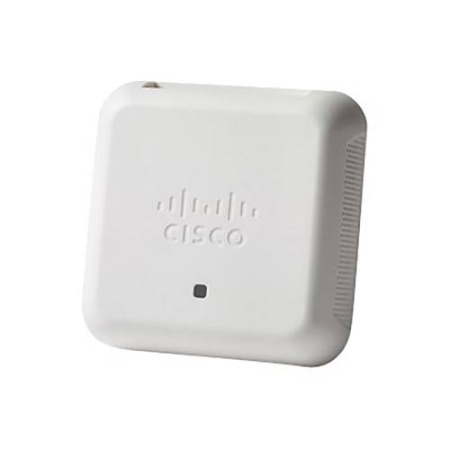

Точка доступа Cisco Small Business 100 WAP150-E-K9-EU

Standards

IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

Ports

LAN Gigabit Ethernet auto-sensing

Cabling type

Category 5e or better

Antennas

Internal antennas optimized for installation on a wall

LED indicators

1 multifunction LED

Operating system

Linux

Ports

10/100/1000 Ethernet, with support for 802.3af /at PoE, power port for AC adapter (included)

Buttons

Reset button, power on/off push button

Lock slot

Slot for Kensington lock

LEDs

1 LED

Physical dimensions (W x D x H)

5.31 x 5.31x 1.5 in. (135 x 135 x 38 mm)

Weight

0.77lb or 350g

VLAN support

Yes

Number of VLANs

1 management VLAN plus 8 VLANs for SSIDs

802.1X supplicant

Yes

SSID-to-VLAN mapping

Yes

Auto-channel selection

Yes

Spanning tree

Yes

Load balancing

Yes

IPv6

Yes

Layer 2

802.1Q-based VLANS, 8 active VLANs plus 1 management VLAN

WPA, WPA2

Yes, including Enterprise authentication

Access control

Yes, management access control list (ACL) plus MAC ACL

Secure management

HTTPS

SSID broadcast

Yes

Rogue access point detection

Yes

Multiple mounting options

Desktop or Wall

Physical security lock

Kensington lock slot

QoS

Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), client QoS

Wireless throughput

Up to 1.2 Gbps data rate (real-world throughput will vary)

Recommended user support

Up to 64 connective users, 10 active users per radio

Single Point Setup

Yes

Number of access points per cluster

4

Active clients per cluster

120

Web user interface

Built-in web user interface for easy browser-based configuration (HTTP, HTTPS)

Management protocols

Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour

Remote management

Yes

Event logging

Local, remote syslog, email alerts

Network diagnostics

Logging and packet capture

Web firmware upgrade

Firmware upgradable through web browser, imported or exported configuration file

Dynamic Host Configuration Protocol (DHCP)

DHCP client

IPv6 host

Yes

HTTP redirect

Yes

Frequency

Dual concurrent radios (2.4 and 5 GHz)

Radio and modulation type

Dual radio, orthogonal frequency division multiplexing (OFDM)

WLAN

802.11n/ac

2x2 multiple-input multiple-output (MIMO) with 2 spatial streams at 5 GHz

2x2 MIMO with 2 spatial streams at 2.4 GHz

20-, 40-, and 80-Mhz channels for 802.11ac

20- and 40-Mhz for 802.11n

PHY data rate up to 1.2 Gbps

802.11 dynamic frequency selection (DFS)

Data rates supported

802.11a/b/g:
