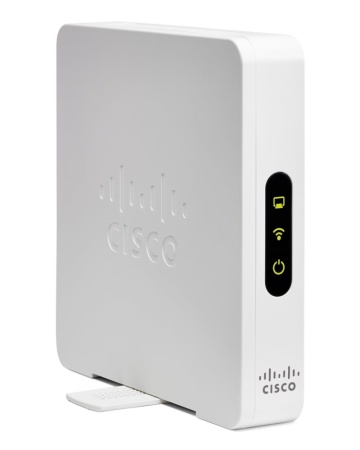

Cisco Small Business 100 организуют надежную защищенность подключений без аппаратного контроллера, обеспечивают беспроводную связь 802. 11n и 802. 11ac, имеют элементарное управление, быстро настраиваются. Позволяют подключать больше девайсов с сохранением производительности, организуют эффективную работу.
Точки доступа оснащены упрощенной конфигурацией, обладают улучшенной развертываемостью и масштабируемостью. Охватывают обширную зону покрытия без внедрения вспомогательного оборудования. Защищают данные, пользуются расширенными протоколами шифрования.
|
Specifications |
Description |
|
|
Standards |
IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
|
|
Cabling type |
Category 5e or better |
|
|
Antennas |
Internal antennas optimized for desktop installation with vertical orientation |
|
|
LED indicators |
Power, WLAN, LAN |
|
|
Operating system |
Linux |
|
|
Ports |
10/100/1000 Ethernet, with support for 802.3af/at PoE, Power Port for AC adapter |
|
|
Power Supply |
External 12V 1.5A DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af/at PoE |
|
|
Buttons |
Reset button, Power (on/off), Push button |
|
|
Lock slot |
Slot for Kensington lock |
|
|
LEDs |
Power, Wireless, Ethernet |
|
|
Physical dimensions (W x D x H) |
6.693 x 6.693x 1.413 in. (170 x 170 x 35.9 mm) |
|
|
Weight |
0.89 lb (0.40kg) |
|
|
VLAN support |
Yes |
|
|
Number of VLANs |
1 management VLAN plus 8 VLANs for SSIDs |
|
|
802.1X supplicant |
Yes |
|
|
SSID-to-VLAN mapping |
Yes |
|
|
Auto channel selection |
Yes |
|
|
Spanning tree |
Yes |
|
|
Load balancing |
Yes |
|
|
IPv6 |
Yes ● IPv6 host support● IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc. |
|
|
Layer 2 |
802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN |
|
|
WPA and WPA2 |
Yes, including Enterprise authentication |
|
|
Access control |
Yes, management access control list (ACL) plus MAC ACL |
|
|
Secure management |
HTTPS |
|
|
SSID broadcast |
Yes |
|
|
Rogue-access-point detection |
No |
|
|
Mounting options |
Desktop only |
|
|
Physical security lock |
Kensington lock slot |
|
|
Quality of service (QoS) |
Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), Client QoS |
|
|
Wireless throughput |
Up to 300-Mbps data rate (real-world throughput will vary) |
|
|
Recommended user support |
Up to 32 connective users, 16 active users per radio |
|
|
Web user interface |
Built-in web user interface for easy browser-based configuration (HTTP/HTTPS) |
|
|
Management protocols |
Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour |
|
|
Remote management |
Yes |
|
|
Event logging |
Local, remote syslog, email alerts |
|
|
Network diagnostics |
Logging and packet capture |
|
|
Web firmware upgrade |
Firmware upgradable through web browser, imported/exported configuration file |
|
|
Dynamic Host Configuration Protocol (DHCP) |
DHCP client |
|
|
IPv6 host |
Yes |
|
|
HTTP redirect |
No |
|
|
Frequency |
Dual concurrent radios (2.4 and 5 GHz) |
|
|
Radio and modulation type |
Dual radio, orthogonal frequency division multiplexing (OFDM) |
|
|
WLAN |
802.11n 2x2 multiple-input multiple-output (MIMO) with 2 spatial streams 20, and 40 MHz for 802.11n PHY data rate up to 600 Mbps |
|
|
Data rates supported |
802.11a/b/g: ● 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps● 802.11n: 6.5 to 300 Mbps ◦ 20-MHz bandwidth: MCS 0-15 for supported data rates ◦ 40-MHz bandwidth: MCS 0-15 for supported data rates |
|
|
Серия
|
Small Business 100 |
|
Тип товара
|
Точка доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внутренняя |
|
Кол-во антенн
|
2 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
