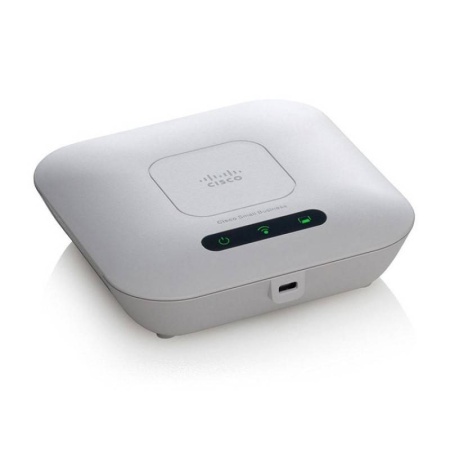

Точка доступа Cisco Small Business 100 WAP121-A-K9-AR

Standards

IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

Ports

LAN Fast Ethernet auto sensing, DC jack

Switch

Power button (on/off)

Buttons

Power (on/off) push button, Reset button

Cabling type

Category 5e or better

Antennas

Internal antennas optimized for wall, ceiling, or desktop placement

LEDs

Power, WLAN, LAN

Operating system

Linux

Ports

10BASE-T/100BASE-TX Ethernet, 12V DC power with support for 802.3af PoE

Power supply

External 12V 0.5A DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af PoE

Buttons

Power (on/off) push button; Reset button

Lock slot

Slot for Kensington lock

LED

Power, Wireless, Ethernet

Physical dimensions (W x D x H)

4.89 x 4.89 1.38 in. (124.17 x 124.17 x 35 mm)

Weight

0.37 lb or 168 g

PoE

802.3af

Peak PoE power

6W

VLAN support

Yes

Number of VLANs

1 management VLAN plus 4 VLANs for Service Set ID (SSID)

Multiple SSIDs

4

802.1X supplicant

Yes

SSID to VLAN mapping

Yes

Auto channel selection

Yes

Spanning tree

Yes

Load balancing

Yes

IPv6

Yes

Layer 2

802.1Q-based VLANS, 4 active VLANS plus 1 management VLAN

WPA/WPA2/WEP

Yes, including Enterprise authentication

Access control

Yes, management access control list (ACL) plus MAC ACL

Secure management

HTTPS

Wi-Fi Protected Setup (WPS)

Yes (soft WPS, no hardware push button)

SSID broadcast

Yes

Rogue access point detection

Yes

Multiple mounting options

Desktop installation; mounting bracket included for easy ceiling or wall mounting

Physical security lock

Kensington lock slot

QoS

Wi-Fi Multimedia & Traffic Specification (WMM TSPEC)

Wireless throughput

Up to 300 Mbps data rate (real-world throughput will vary)

Recommended user support

Up to 16 connected users, or 10 active users.

Web user interface

Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)

Single Point Setup

Yes

Maximum access points per cluster

4

Active clients per cluster

40

Management protocols

Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour

Remote management

Yes

Event logging

Local, remote syslog, email alerts

Network diagnostics

Logging and packet capture

Web firmware upgrade

Firmware upgradable through web browser, imported/exported configuration file

Dynamic Host Configuration Protocol (DHCP)

DHCP client

IPv6 host

Yes

Frequency

Single-band 2.4 GHz

Radio and modulation type

Single radio, orthogonal frequency division multiplexing (OFDM)

WLAN

802.11n

Operating channels

1 to 13 (depending on country)

Channels 1 through 11 (FCC)

Channels 1 through 13 (ETSI)

Wireless isolation

Wireless isolation between clients

External antennas

None

Internal antennas

Internal fixed PIFA antennas

Antenna gain in dBi

2 dBi each antenna

Transmitted output power

Receiver sensitivity
