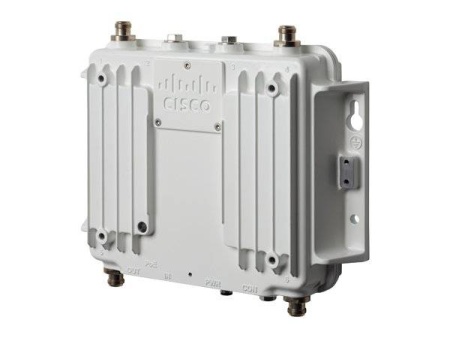

Серия Cisco IW3700 создана для использования в сложных промышленных условиях: в транспортной, автомобильной, газовой, нефтеперерабатывающей отрасли. Эффективно справляется с задачами любой сложности при работе в широком диапазоне температур. Обеспечивает повышенную скорость передачи данных, организует оптимальный охват площади.
Точки доступа оборудованы расширенными возможностями, позволяют поддерживать исключительную пропускную способность в производственных, офисных и сервисных сетях. Являются надежными, производительными, оснащены улучшенной масштабируемостью, уменьшают риск простоя.
|
Software |
Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers: ● 8.0.120.0 or later for the Cisco IW3700 Series Access PointCisco IOS Software Release ● 15.3(3)JA5 or later for the Cisco IW3700 Series Access Point |
|||||||||||||
|
Supported wireless LAN controllers |
● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller |
|||||||||||||
|
802.11ac Wave 1 capabilities |
● 4 x 4 MIMO with 3 spatial streams ● Maximal-Ratio Combining (MRC) ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
|||||||||||||
|
802.11n version 2.0 (and related) capabilities |
● 4 x 4 MIMO with 3 spatial streams ● Maximal-Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
|||||||||||||
|
Interfaces |
● 10/100/1000BASE-T autosensing (M12 8P female connector with X-coding per IEC 61076-2), PoE In (802.3af), PoE+ In (802.3at) ● 10/100/1000BASE-T autosensing (M12 8P female connector with X-coding per IEC 61076-2), PoE Out (802.3af) ● Management console port (serial with RJ-45 connector) |
|||||||||||||
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
|||||||||||||
|
System memory |
● 512 MB DRAM ● 64 MB flash |
|||||||||||||
|
Dimensions (W x L x H) |
● Access point (not including connectors): 11.3 x 8.0 x 2.3 in (28.7 x 20.3 x 5.9 cm) ● Volume: 148 cubic inches (2.4 liters) |
|||||||||||||
|
Weight |
● 6.7 lb (3.0 kg) |
|||||||||||||
|
Environmental |
● Nonoperating (storage) temperature: -40° to +185°F (-40° to +85°C) ● Nonoperating (storage) altitude test: +25˚C, 15,000 ft. ● Operating temperature: -40° to +158°F (-40° to +70°C) with solar load and still air ● Extended operating temperature (DC powered): -58° to +167°F (-50° to +75°C) without solar loading, still air, and cold start limited to -40°C ● Operating type test: +85°C for 16 hours ● Operating humidity: 0% to 100% (condensing) ● Operating altitude: 15,000 ft. (4,500 m) ● Wind resistance: Up to 160 mph (257 km/h) sustained winds |
|||||||||||||
|
Surge |
● Surge protection to ± 2 kV (line-earth) and ± 1 kW (line-line) on DC power input ● Surge protection to ± 4 kV on Ethernet ports |
|||||||||||||
|
Input power requirements |
● 9.6 to 60 VDC (M12 4P male connector with A-coding per IEC 61076-2) ● PoE and PoE+ (M12 8P female connector with X-coding per IEC 61076-2) |
|||||||||||||
|
Серия
|
Industrial Wireless 3700 |
|
Тип товара
|
Точка доступа |
|
Тип использования
|
Универсальная |
|
Тип антенны
|
Внешняя |
|
Кол-во антенн
|
4 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
