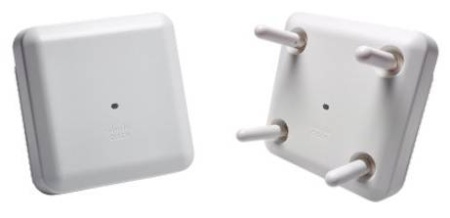

Cisco Aironet 3800 разработаны для небольших предприятий, офисов, отделений. Гарантируют филиалов безопасность, исключительную производительность, улучшенную пропускную способность. Имеют расширенный функционал, выполняют моментальный сетевой анализ, отслеживают аномалии в работе и предлагают высокую функциональность.
Точки доступа контролируют бесперебойность системы, выявляют и оперативно ликвидируют потенциальные угрозы. Используют встроенную гиперлокацию, организуют защищенное высокоскоростное подключение, поддерживают возможность выбора динамической полосы пропускания.
|
Software and supported wireless LAN controllers |
● Cisco Unified Wireless Network Software Release 8.2.111.0 or later ● Cisco IOS® XE Software Release 16.3 ● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller ● Cisco Catalyst 3850 Series and 3650 Series Switches ● Cisco Mobility Express |
||||||
|
802.11n version 2.0 (and related) capabilities |
● 4x4 MIMO with three spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
||||||
|
802.11ac Wave 1 capabilities |
● 4x4 MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support |
||||||
|
802.11ac Wave 2 capabilities |
● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support |
||||||
|
Wi-Fi Alliance Certified |
● Wi-Fi Certified a, b, g, n, ac ● Wi-Fi Vantage ● WMM ● Passpoint |
||||||
|
Integrated antenna |
Flexible radio (either 2.4 GHz or 5 GHz) ● 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth● 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio ● 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
||||||
|
Smart Antenna Connector |
● Available on the 3802e Series and 3802p Series access points only ● Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point ● Required when running the flexible radio as either a: ◦ Second 5-GHz serving radio ◦ Wireless Security Monitoring radio |
||||||
|
Interfaces |
◦ 2 Ethernet ports ◦ 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ◦ CAT 5e cabling ◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling ◦ 100/1000BASE-T autosensing (RJ-45 - AUX port) ◦ Management console port (RJ-45) |
||||||
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
||||||
|
Dimensions (W x L x H) |
● Access point (without mounting brackets): 3802I: 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm), 3802E: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm), 3802P: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm) |
||||||
|
Weight |
● 4.6 lb (2.09 kg) |
||||||
|
Input power requirements |
● 802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE®) ● 802.3at power injector (AIR-PWRINJ6=) ● 50W power supply (AIR-PWR-50=) |
||||||
|
Power draw |
● 25.8W at the PSE (22.5W at the PD) with all features enabled except for the USB 2.0 port ● 30W at the PSE (25.5W at the PD) with the USB 2.0 port enabled |
||||||
|
System memory |
● 1024 MB DRAM ● 256 MB flash |
||||||
|
Серия
|
Aironet 3800 |
|
Тип товара
|
Точка доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внутренняя |
|
Кол-во антенн
|
4 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
